Fan - Backrest - Driver Seat - Remove And Replace: Install

  1. Position the driver seat backrest fan onto the seat back, and then install the fan cover to the seat back.
    NOTE: Verify the tabs (x4) are fully engaged.
    G15081455Courtesy of TESLA, INC.

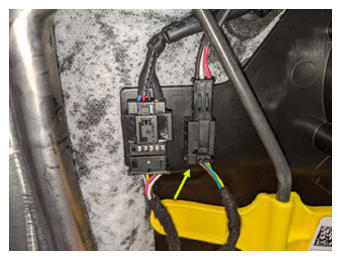

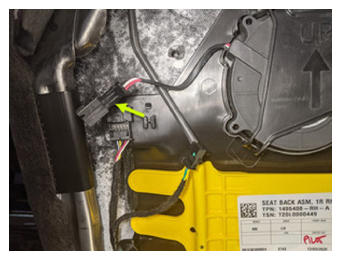

  2. Connect the fan controller electrical connector, and then slide the connector downward to attach it to the seat back suspension.
    G15081456Courtesy of TESLA, INC.
    G15081457Courtesy of TESLA, INC.

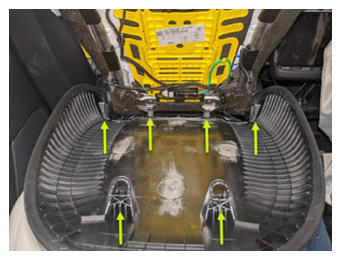

  3. With assistance, position the driver seat back shell onto the seat back assembly, and then install the shell onto the seat back.
    G15081458Courtesy of TESLA, INC.
    G15081459Courtesy of TESLA, INC.
  4. Reconnect LV power. See LV Power (Disconnect and Connect) .
  5. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  6. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors
  7. Install the driver headrest trim. See Trim - Headrest - Driver (Remove And Replace) .
  8. Close the LH rear door.
  9. Move the driver seat back to its original position.
  10. Raise the LH windows.
  11. Close the LH front door.
