Cover - Front - Seat Track - 1st Row Seat - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the front LH seat fully back.

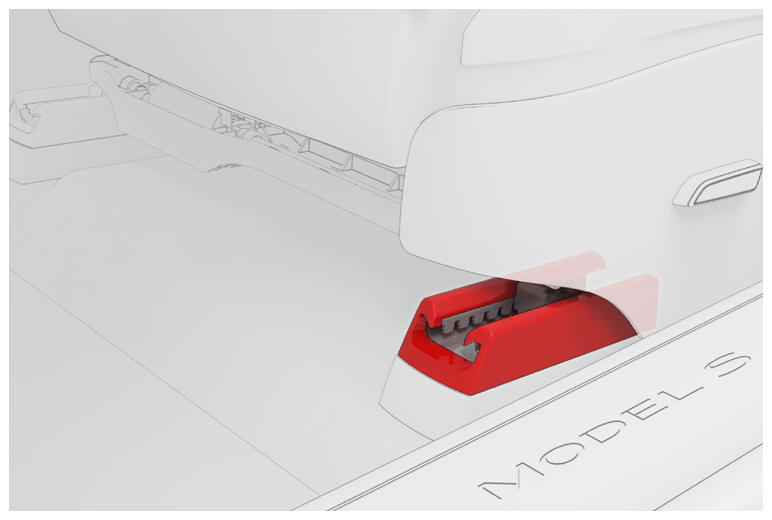

  3. Slide the seat track cover away from the seat, and then remove the LH front seat track cover from the vehicle.
    G15081446Courtesy of TESLA, INC.
