Seat Assembly - 1st Row - RH Remove and Replace: Remove

Open the RH doors and lower the RH windows.
Move the RH 1st row seat forward.

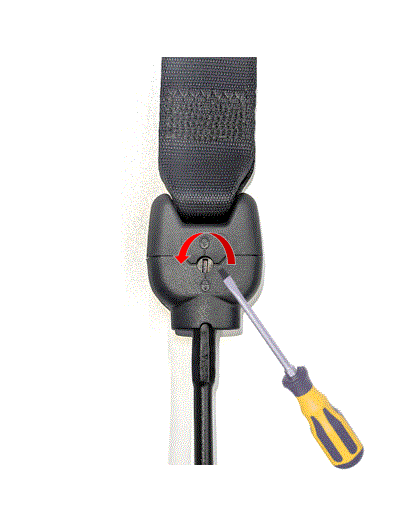

Use a flathead screwdriver to rotate the lock mechanism on the front seat belt linkage counterclockwise to release it from the pretensioner, and then slide the linkage off the pretensioner and set it aside.
CAUTION: DO NOT rotate clockwise to avoid damage to the mechanism.

NOTE: The linkage design may vary, but will function the same.

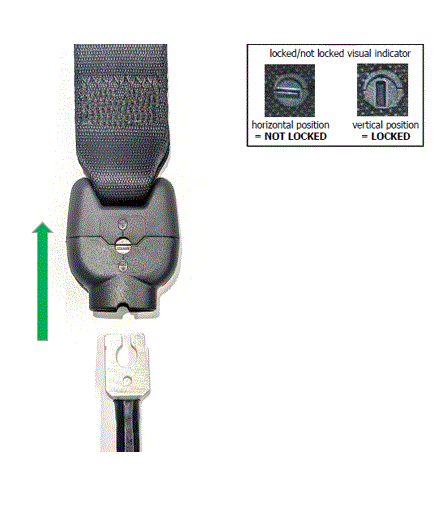

NOTE: The lock screw will remain in the horizontal position when released.

NOTE: A light audible click will be heard when the linkage is released.

Courtesy of TESLA INC.

Courtesy of TESLA INC.

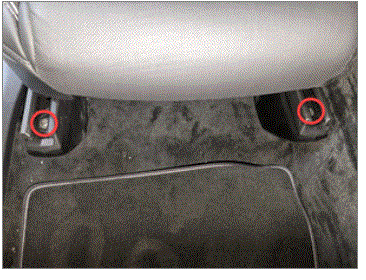

Remove and discard the bolts (x2) that attach the rear of the 1st row RH seat tracks to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
Courtesy of TESLA, INC.
Move the RH 1st row seat rearwards.

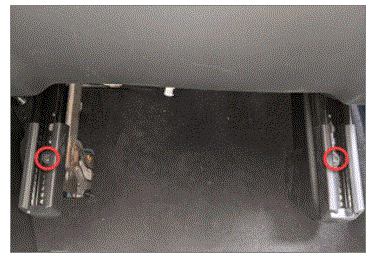

Remove and discard the bolts (x2) that attach the front of the 1st row RH seat tracks to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
Courtesy of TESLA INC.
Move the 1st row RH seat to the middle of the track and the seat back to the most upright position.
Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
Disconnect LV power. See LV Power (Disconnect and Connect) .
Position the RH 1st row seat to gain access to the underside of the seat.

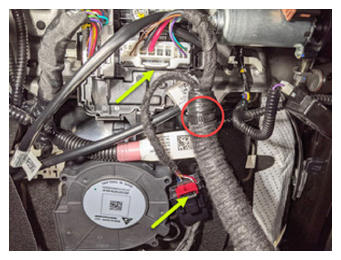

Release the red locking tab on the black connector, disconnect the RH side body harness electrical connectors (x2) from the seat controller, and then release the clip that attaches the harness to the seat assembly.

Courtesy of TESLA INC.

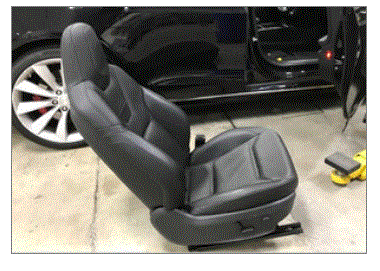

With assistance, remove the 1st row RH seat from the vehicle.
CAUTION: Use caution not to damage components during removal.

Courtesy of TESLA INC.
