Seat Assembly - 1st Row - RH Remove and Replace: Install

  1. With assistance, position the 1st row RH seat into the vehicle.
    CAUTION: Take care not to damage surrounding components while lifting the seat into the vehicle.
  2. With assistance, position the 1st row RH seat to gain access to the underside of the seat.

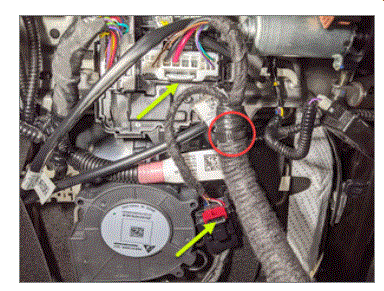

  3. Fasten the clip that attaches the RH side body harness to the 1st row RH seat assembly, connect the harness electrical connectors (x2), and then engage the red locking tab on the black connector.
    G00655176Courtesy of TESLA INC.
  4. With assistance, move the 1st row RH seat to the upright position.
  5. Connect LV power. See LV Power (Disconnect and Connect)
  6. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace)
  7. Move the RH 1st row seat forward.

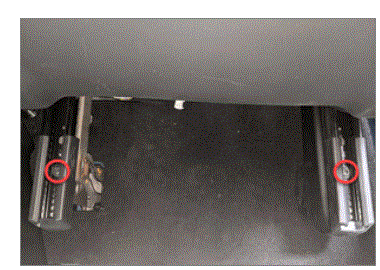

  8. Install new bolts (x2) that attach the rear of the 1st row RH seat, seat tracks to the vehicle.

    34 N.m (25.1 ft-lbs)

    G00655177Courtesy of TESLA INC.

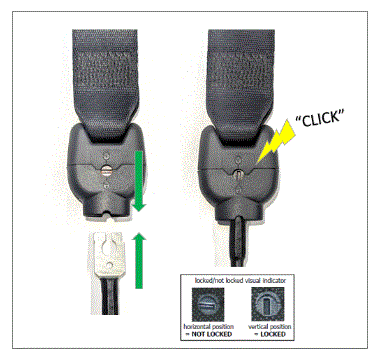

  9. Install the front seat belt linkage to the pretensioner:
    1. Make sure the lock screw is in the horizontal position. If the lock screw is not in the horizontal position, follow the release instructions to unlock it.
    2. Verify there are no twists in the seat belt from the upper B-pillar trim to the pretensioner.
    3. Install the linkage onto the pretensioner cable.
      NOTE: An audible click will be heard.
      NOTE: The lock screw will rotate back to the locked position.
    4. Perform a firm pull test on the seat belt with at least 15 pounds of force.
      multimedia:A supplement to the article is available.
    G00655178Courtesy of TESLA INC.
  10. Close the RH rear door and raise the RH rear window. rtx
  11. Move the 1st row RH seat rearward.
  12. Install new bolts (x2) that attach the front of the 1st row RH seat tracks to the vehicle.

    34 N.m (25.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx Plus T45 socket
    G00655174Courtesy of TESLA INC.
  13. Move the 1st row RH seat to the middle of the track.

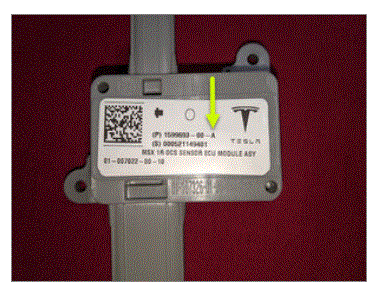

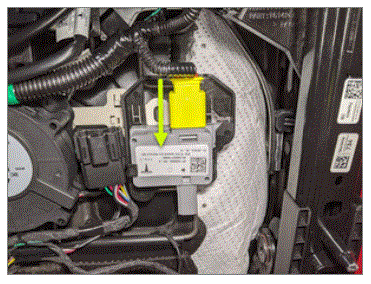

  14. Inspect the 1st row RH seat Occupant Classification System (OCS) module revision number, and then choose from the following:
    • If the OCS module revision number is A-C, redeploy the vehicle firmware using Toolbox 3. See FIRMWARE REINSTALL - TOOLBOX , and then go to  22.
    • If the OCS module revision number is D, continue to the next step.
    G00655179Courtesy of TESLA INC.
    G00655180Courtesy of TESLA INC.
  15. Connect a laptop with Toolbox 3 to the vehicle.
  16. In Toolbox, click the Actions  tab, and then search for "Service-Redeploy".
  17. Click SERVICE CAN REDEPLOY  , and then click Run  and allow the routine to complete.
    NOTE: Select the "X" at the top right of window to close once complete.
    NOTE: The routine will state pass, but the update will continue to run in the background.
    NOTE: The UI will show the update progress.
  18. Re-establish connection to Toolbox 3.
  19. In Toolbox, click the Actions/Autodiag tab  , and then search for 'Calibration'.
  20. Click PROC_VCSEATP_SEAT-CALIBRATE, and then click Run  and allow the routine to complete.
    NOTE: Verify that there are no items on the 1st row RH seat during this routine.
    NOTE: Select the "X" at the top right of window to close once complete.
  21. Disconnect Toolbox 3 and remove the laptop from the vehicle.
  22. Raise the RH windows and close the RH doors.
