Microphone - Seat - Driver - Remove And Replace: Install

  1. Position the driver seat microphone onto the driver back rest foam, and then feed the harness through the access on the foam to install the microphone onto the foam.
    NOTE: Feed harness through access hole on seat back foam
    G15082052Courtesy of TESLA, INC.
    G15082053Courtesy of TESLA, INC.
  2. Position the driver seat back rest trim onto the driver seat back rest foam, align the Velcro strips (x4), and then position the air bag pouch into the left side of the back rest foam.
    G15082054Courtesy of TESLA, INC.
    G15082055Courtesy of TESLA, INC.
    G15082056Courtesy of TESLA, INC.
  3. With assistance, maneuver the driver seat back trim assembly downward onto the seat frame to install it onto the seat assembly.
    G15082057Courtesy of TESLA, INC.
  4. Install the clip that attaches the driver seat harness to the RH side of seat back frame.
    G15082058Courtesy of TESLA, INC.

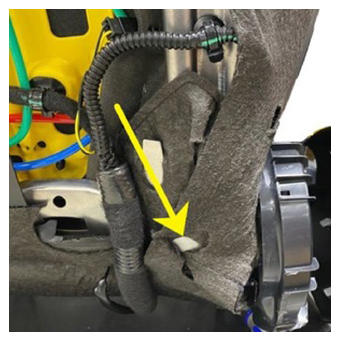

  5. Carefully secure the RH side of the driver seat back trim onto the driver seat frame.
    G15082059Courtesy of TESLA, INC.
    G15082060Courtesy of TESLA, INC.

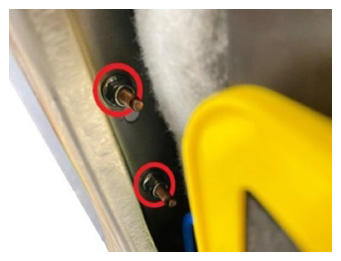

  6. Install new nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15082061Courtesy of TESLA, INC.
    G15082062Courtesy of TESLA, INC.
  7. Fasten the tabs (x2) that attach the lower portion of the driver seat backrest lumbar support to the seat back frame.
    G15082063Courtesy of TESLA, INC.
  8. Install the bolt that attaches the driver seat backrest lumbar support to the seat back frame.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15082064Courtesy of TESLA, INC.

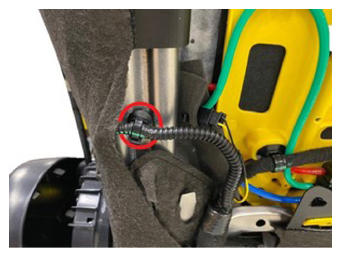

  9. Install the clip that attaches the driver seat side airbag harness to the driver seat, seat frame.
    G15082065Courtesy of TESLA, INC.

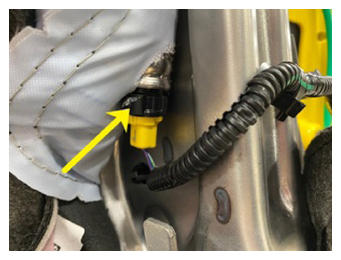

  10. Connect the driver seat side air bag electrical connector, and then secure the safety lock.
    G15082066Courtesy of TESLA, INC.
    G15082067Courtesy of TESLA, INC.

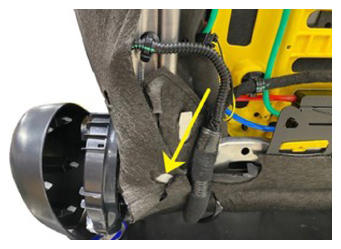

  11. Carefully secure the LH side of the driver seat, seat cover and foam onto the seat frame.
    G15082068Courtesy of TESLA, INC.
    G15082069Courtesy of TESLA, INC.
  12. Secure the retainers (x6), and then secure the trim strap onto the driver seat, seat back frame.
    G15082070Courtesy of TESLA, INC.

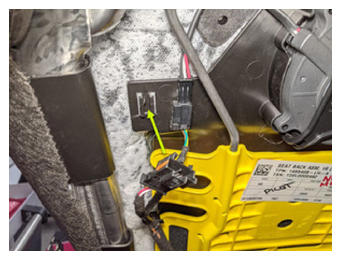

  13. Secure the female side of microphone connector and harness clips (x2) onto seat back suspension.
    G15082071Courtesy of TESLA, INC.
    G15082072Courtesy of TESLA, INC.

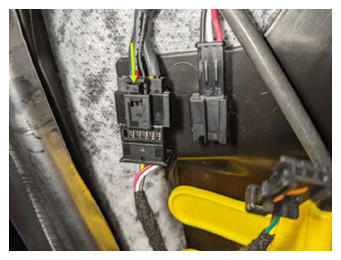

  14. Connect the driver seat microphone, and then secure harness clip onto the seat back foam.
    G15082073Courtesy of TESLA, INC.
    G15082074Courtesy of TESLA, INC.
  15. Slide the fan controller electrical connector downward to install it onto the bracket, and then connect the electrical connector.
    G15082075Courtesy of TESLA, INC.

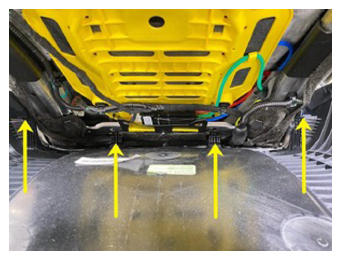

  16. With assistance, align and fully secure the clips that attach the driver seat back shell to the seat assembly.
    G15082076Courtesy of TESLA, INC.
    G15082077Courtesy of TESLA, INC.
    G15082078Courtesy of TESLA, INC.
  17. Install the driver headrest trim. See Trim - Headrest - Driver (Remove And Replace) .
  18. Position the driver seat assembly onto the seat back.
    NOTE: Protect the seat from damage.

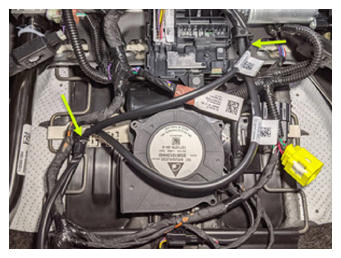

  19. Secure the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15082079Courtesy of TESLA, INC.

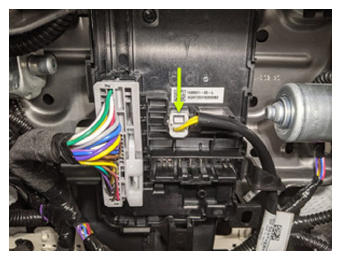

  20. Connect the FSB vent heat pad electrical connector from the seat controller.
    G15082080Courtesy of TESLA, INC.
  21. Secure the seat back elastic straps (x2) to the seat frame.
    G15082081Courtesy of TESLA, INC.
  22. Install the front seat side shield RH carrier from the driver seat. See Carrier - RH - Side Shield - Inboard - Front Seat (Remove And Replace) .
  23. Install the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove And Replace)
  24. Install the front seat side shield LH carrier from the driver seat.

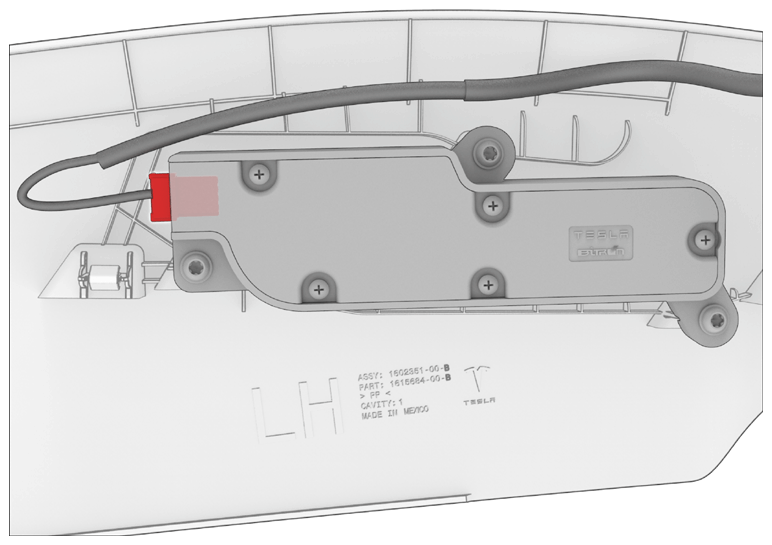

  25. Connect the electrical harness to the back rest and cushion adjust switch assembly, and then verify the functions of the seat switches.
    G15082082Courtesy of TESLA, INC.

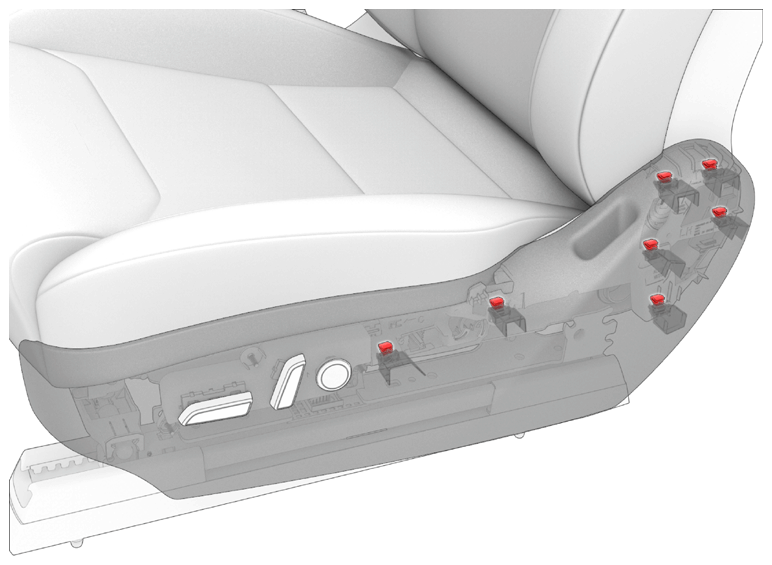

  26. Position the driver seat outboard side shield onto the seat, and then install the clips (x7) that attach the side shield to the seat.

    Tip: Apply pressure to the side shield to fully seat the clips. The side shield should sit flush against the seat cushion.

    G15082083Courtesy of TESLA, INC.
  27. Install the screw that attaches the driver seat outboard side shield to the seat assembly.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15082084Courtesy of TESLA, INC.
  28. Install the driver seat into the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace) .
