Switch - Seat Fold - 2nd Row - RH - Remove And Replace: Remove
- Open the RH doors and lower the RH windows.
- Move the front passenger seat forward.
- Fold the RH 2nd row seat to the down position.NOTE: If the 2nd lower seat cushion is not present, protect the seat as required.
- Remove the RH 2nd row seat back panel. See Back Panel - 2nd Row Seat - RH (Remove And Replace) .

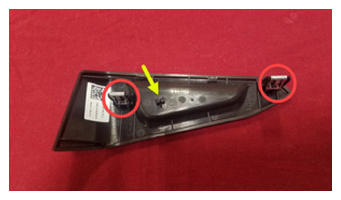

- Release the clips (x2) that attach the RH 2nd row back side cover to the seat assembly, and then remove the cover from the seat assembly.

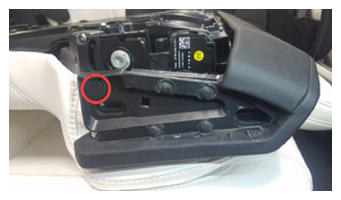

- Remove the clip that attaches the RH 2nd row shoulder plastic trim to the latch assembly.
- Remove the RH 2nd row headrest. See Headrest - 2nd Row - LH (Remove And Replace)
- Remove the RH 2nd row headrest guide locks. See Guide Lock - Headrest - 2nd Row (Remove And Replace) .

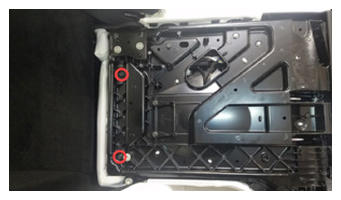

- Remove the bolts (x2) that attach the RH 2nd row backrest cushion to the frame assembly.
8 N.m (5.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

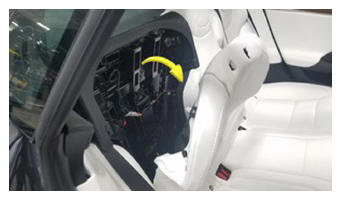

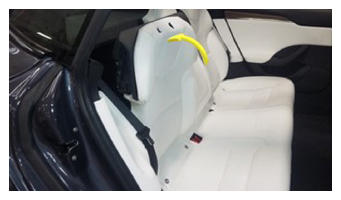

- Fold the RH 2nd row seat to the up position, but do not latch the seat back.

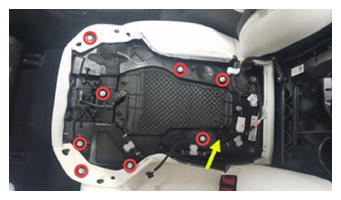

- Release the clips (x8) that attaches the RH 2nd row backrest cushion to the backrest frame, and then disconnect the electrical connector.NOTE: Do not remove the cushion from the vehicle.

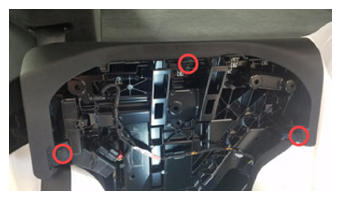

- Remove the clips (x3) that attach the RH 2nd row shoulder plastic trim to the frame assembly.

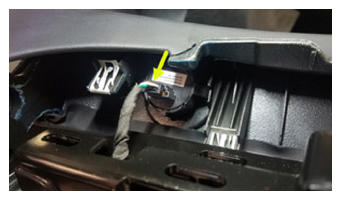

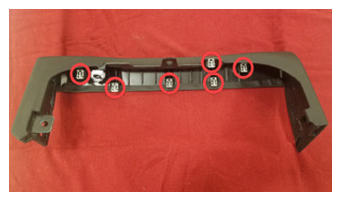

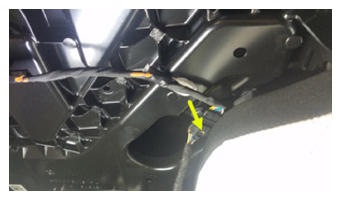

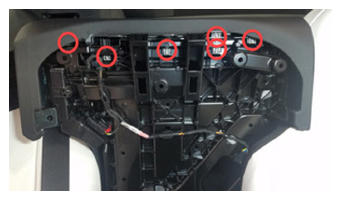

- Release the clips (x6) that attach the RH 2nd row shoulder plastic trim to the frame assembly, then disconnect the fold switch electrical connector.

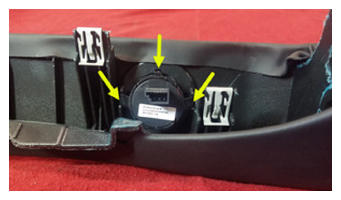

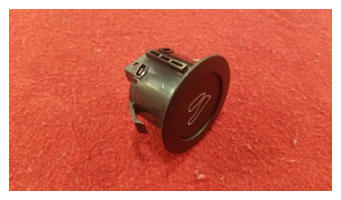

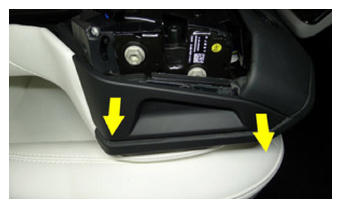

- Release the tabs (x2) that attach the RH 2nd row seat fold switch to the shoulder plastic trim, and then remove the switch from the trim.
