Switch - Seat Fold - 2nd Row - LH - Remove And Replace: Remove
- Remove the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace)
.
- Open the LH rear door and lower the LH rear window.
- Remove the LH 2nd row seat back panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .
- Remove the LH 2nd row headrest. See Headrest - 2nd Row - LH (Remove And Replace) .
- Remove the 2nd row 60 seat LH and RH headrest guide locks. See Guide Lock - Headrest - 2nd Row (Remove And Replace) .
- Release the clip that attaches the 2nd row 60 backrest harness to the seat assembly, and then disconnect the electrical connector.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

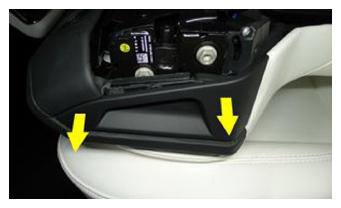

- Release the clips (x2) and fastener that attach the 2nd row LH back side cover to the seat assembly, and then remove the cover from the assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Fold the LH 2nd row seat to the vertical position.
- Release the clips (x4) and fasteners that attach the LH 2nd row backrest cushion to the seat assembly, and then remove the cushion from the assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

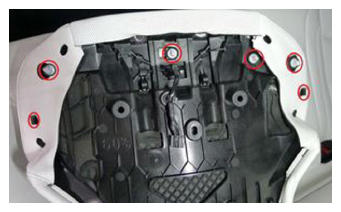

- Remove the rivets (x3) and release the clips (x5) that attach the LH 2nd row seat shoulder plastic trim to the seat assembly, disconnect the electrical connector, and then remove the trim from the assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release the tabs (x2) that attach the LH 2nd row seat fold switch to the shoulder plastic trim, and then remove the switch from the trim.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
