Switch - Seat Fold - 2nd Row - LH - Remove And Replace: Install

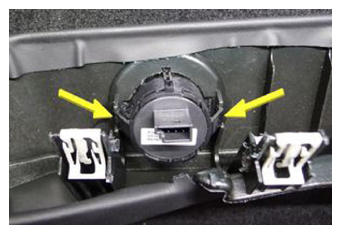

- Install the LH 2nd row seat fold switch into the shoulder plastic trim
 Courtesy of TESLA, INC.
|

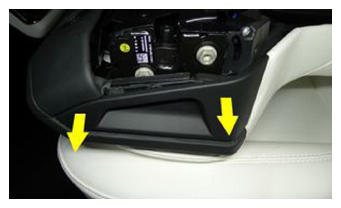

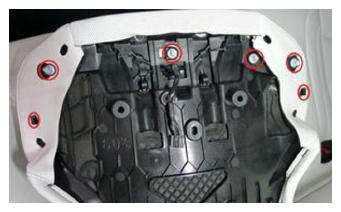

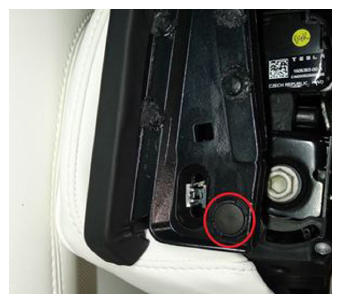

- Position the LH 2nd row seat shoulder plastic trim onto the seat assembly, connect the electrical connector, and then install the rivets (x3) and clips (x5).
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

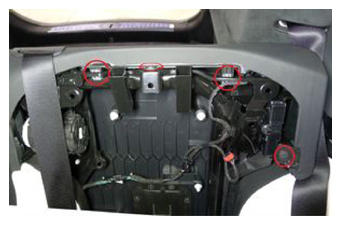

- Install the clips (x4) and fasteners that attach the LH 2nd row backrest cushion to the seat assembly.
 Courtesy of TESLA, INC.
|
- Fold the LH 2nd row seat to the down position.

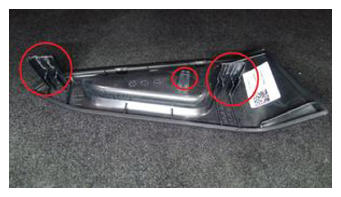

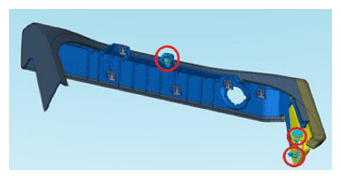

- Position the 2nd row LH back side cover onto the seat assembly, and then install the clips (x2) and fastener that attach the cover to the assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the 2nd row 60 seat LH and RH headrest guide locks. See Guide Lock - Headrest - 2nd Row (Remove And Replace) .
- Install the LH 2nd row headrest. See Headrest - 2nd Row - LH (Remove And Replace) .
- Install the LH 2nd row seat back panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .
- Raise the LH rear window and close the LH rear door.
- Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace)
.
