Closeout - Armrest - 2nd Row - Remove And Replace: Remove

  1. Remove the parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace) .
  2. Open the LH rear door.
  3. Fold down the LH second row seat.

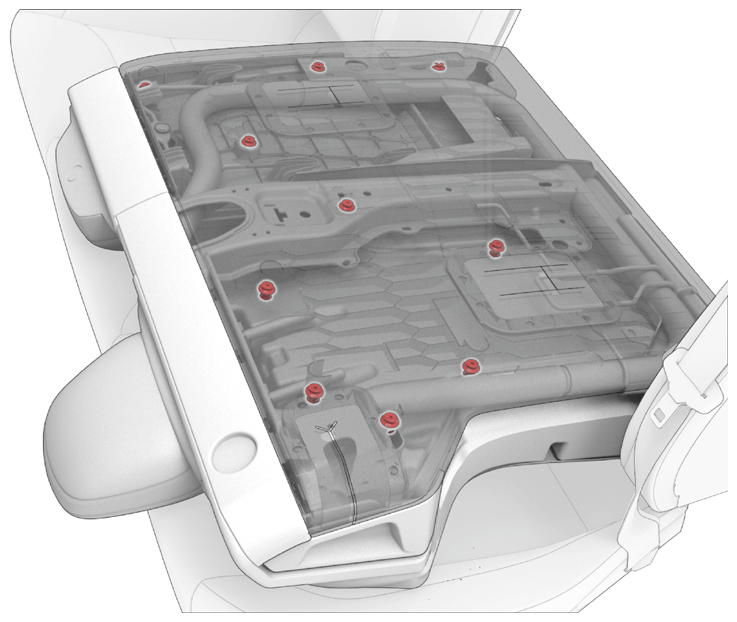

  4. Release the clips that attach the seat back panel to the seat, and then slide the seat back panel out of the bottom of the seat frame.
    G15082334Courtesy of TESLA, INC.
  5. Raise the LH second row seat.
  6. Press the button behind the center headrest and lower the armrest.

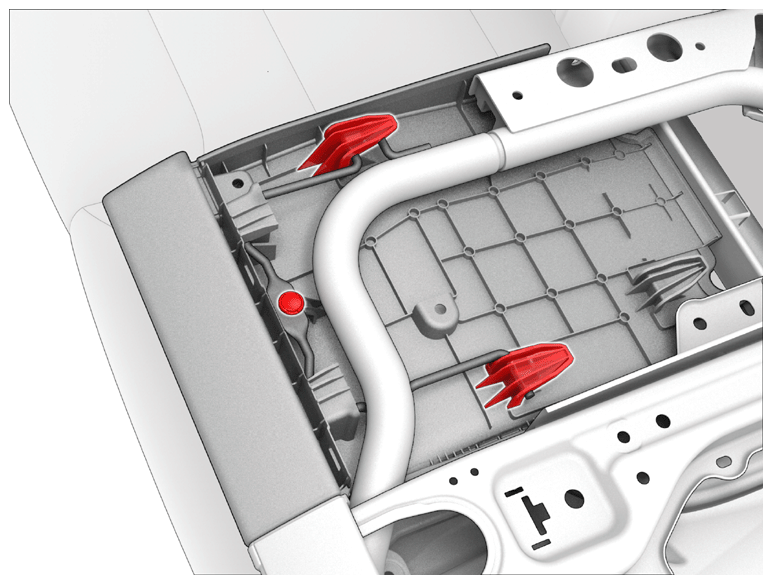

  7. Release the clip in the center armrest closeout, and then lift the center armrest closeout upwards and away from the backrest frame.
    G15082335Courtesy of TESLA, INC.
