Bun - Armrest - 2nd Row - Remove And Replace: Remove

  1. Remove the LH 2nd row back seat panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .
  2. Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove And Replace) .
  3. Place the LH 2nd row seat back assembly upside down on a padded workbench.

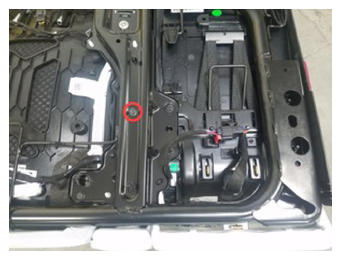

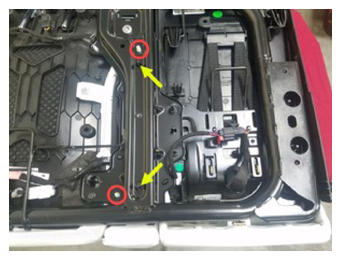

  4. Remove the bolt that attaches the LH 2nd row seat bolster assembly to the back frame.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15082316Courtesy of TESLA, INC.
  5. Position the seat back assembly upright on the padded workbench.

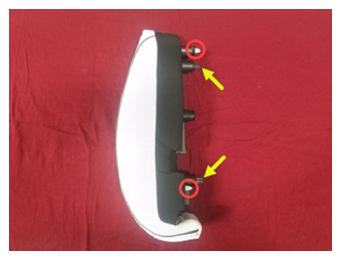

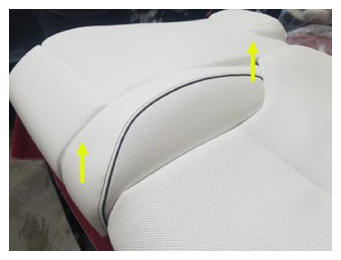

  6. Release the clips (x2) that attach the LH 2nd row bolster assembly to the seat assembly, and then remove the bolster from the seat assembly.
    NOTE: Lightly squeeze the clips to release the sub-bolster.
    G15082317Courtesy of TESLA, INC.
    G15082318Courtesy of TESLA, INC.
    G15082319Courtesy of TESLA, INC.

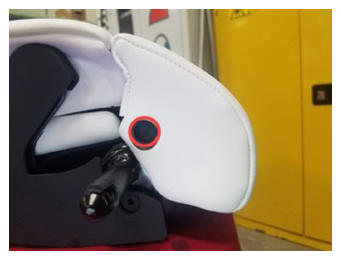

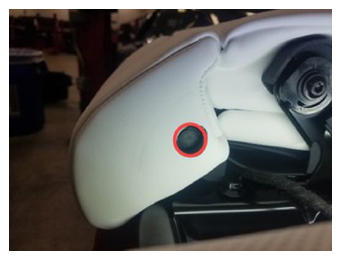

  7. Remove the clips (x2) that attach the 2nd row armrest bun to the seat assembly.
    G15082320Courtesy of TESLA, INC.
    G15082321Courtesy of TESLA, INC.

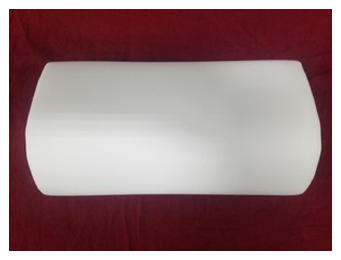

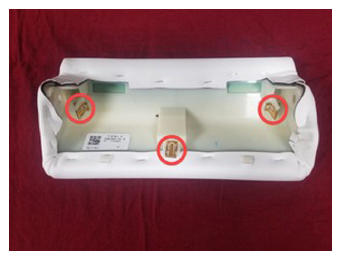

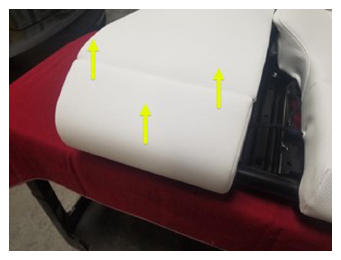

  8. Release the clips (x3) that attach the 2nd row armrest bun to the seat back assembly, and then remove the bun from the assembly.
    G15082322Courtesy of TESLA, INC.
    G15082323Courtesy of TESLA, INC.
    G15082324Courtesy of TESLA, INC.
