Reservoir - Windshield Washer - Remove And Replace: Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  2. Remove the LH underhood apron. See Underhood Apron - LH (Remove and Replace) .
  3. Disconnect the shock tower hose from the washer tank hose.

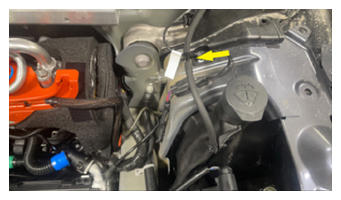

    G15092985Courtesy of TESLA, INC.
  4. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  5. Remove the LH front wheel. See Wheel (Remove and Install) .
  6. Remove the washer system. See SYSTEM - WINDSHIELD WASHER (REMOVE AND REPLACE) .
  7. Remove the horn assembly. See HORN ASSEMBLY (REMOVE AND REPLACE) .
  8. Remove the washer level sensor from the washer reservoir. See SENSOR - LEVEL - WINDSHIELD WASHER RESERVOIR (REMOVE AND REPLACE) .
  9. Release the retainer clip that attaches the washer hose the reservoir.

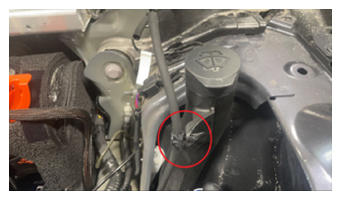

    G15092986Courtesy of TESLA, INC.
  10. Release the washer hose from the hooks (x3) that attach the hose to the reservoir.

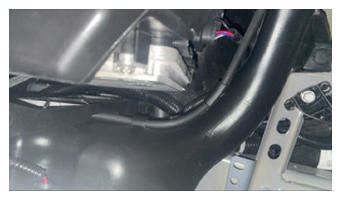

    G15092987Courtesy of TESLA, INC.

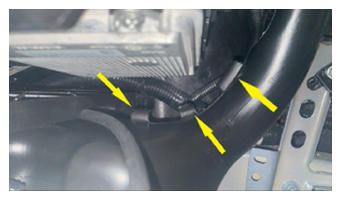

    G15092988Courtesy of TESLA, INC.
  11. Remove the washer fluid pump from the washer reservoir. See PUMP - WINDSHIELD WASHER RESERVOIR (REMOVE AND REPLACE) .
  12. Remove the washer cap from the washer reservoir. See CAP - RESERVOIR - WINDSHIELD WASHER (REMOVE AND REPLACE) .
