Hose - Washer - Cowl Screen - Remove And Replace: Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  2. Remove the LH and RH underhood apron. See Underhood Apron - LH (Remove and Replace) .
  3. Remove the LH and RH wiper arms. See Wiper Arm - LH (Remove And Replace) .
  4. Remove the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .

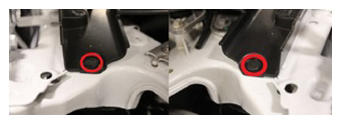

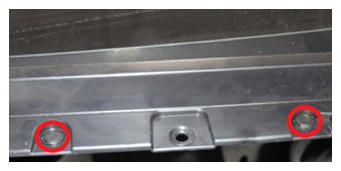

  5. Remove the clips (x4) that attach the wiper cowl screen panel to the vehicle.
    NOTE: 4x push clips, 2x end tabs
    G15092929Courtesy of TESLA, INC.
    G15092930Courtesy of TESLA, INC.

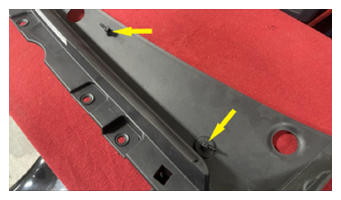

  6. Remove the washer joints from the cowl hose.
    G15092931Courtesy of TESLA, INC.

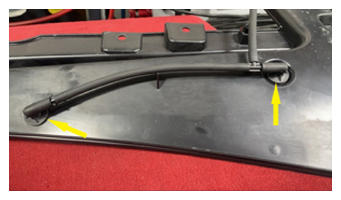

  7. Remove the cowl hose from the cowl screen panel.
    CAUTION: Carefully pull on the cowl hose while bracing the cowl screen panel to remove the cowl hose.
    G15092932Courtesy of TESLA, INC.
