Sill Plate - Front - LH - Remove And Replace: Install

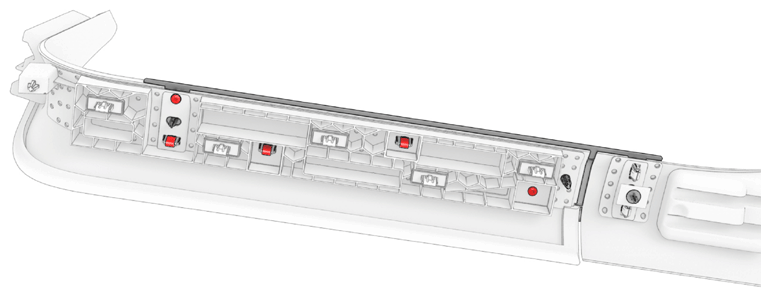

Install the bolts (x2) and clips (x3) that attach the LH front door sill to the lower A-pillar trim.
1.9 N.m (1.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 4 in extension
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Install the LH lower A-pillar trim from the vehicle. See Trim - A-Pillar - Lower - LH (Remove And Replace) .
Install the LH lower A-pillar trim from the vehicle. See Trim - A-Pillar - Middle - LH (Remove And Replace) .
Raise the LH front window and close the LH front door.
