Trim - Sill - Trunk - Remove And Replace: Install

  1. Position the trunk sill trim to the trunk sill, align the guides (x4) to the trunk sill, and then fasten the clips (x6) that attach the trim to the sill.
    G15084818Courtesy of TESLA, INC.

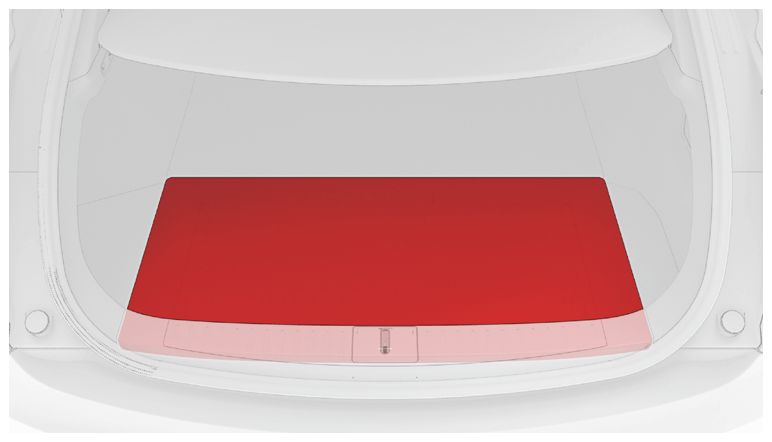

  2. Install the rear trunk load floor, if removed.
    G15084819Courtesy of TESLA, INC.
  3. Install the rear trunk parcel shelf, if removed.
    G15084820Courtesy of TESLA, INC.
  4. Close the liftgate.
