Trim - Side - Trunk - RH - Remove And Replace: Remove

  1. Fold down the RH (40 split) 2nd row seat.
  2. Remove the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
  3. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  4. Remove the rear wall rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  5. Remove the RH trunk load floor bracket. See Bracket - Trunk Load Floor - RH (Remove And Replace) .
  6. Remove the trunk floor front trim. See Trim - Front - Floor - Trunk (Remove And Replace) .
  7. Remove the RH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .

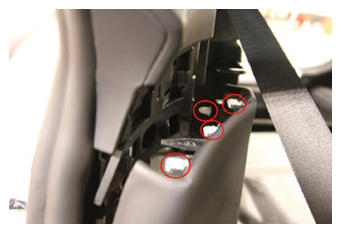

  8. Release the clips (x4) and tab that attach the RH lower C-pillar trim to the RH middle C-pillar trim.
    G15084795Courtesy of TESLA, INC.
  9. Remove the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove And Replace) .

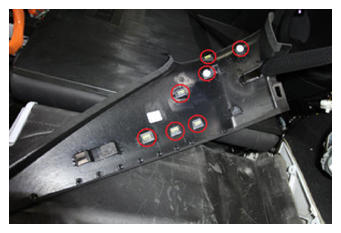

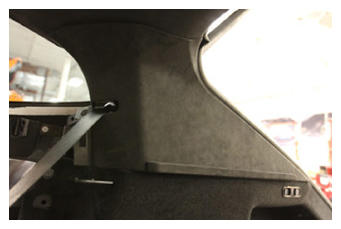

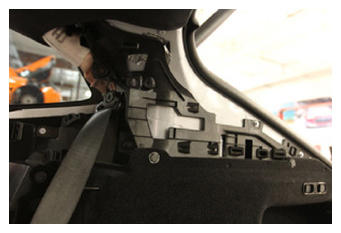

  10. Release the clips (x7) that attach the RH upper C-pillar trim to the vehicle, and then move the upper C-pillar trim aside.
    NOTE: The RH upper C-pillar trim is still tethered to the seatbelt.
    G15084796Courtesy of TESLA, INC.
    G15084797Courtesy of TESLA, INC.
    G15084798Courtesy of TESLA, INC.

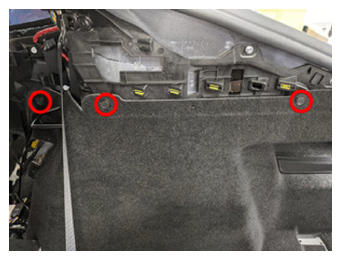

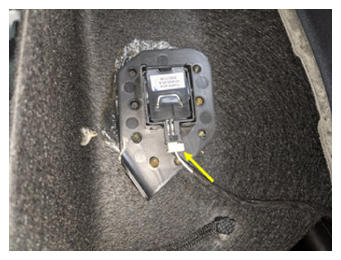

  11. Release the clips (x3) that attach the RH trunk side trim, and then disconnect the electrical connector.
    G15084799Courtesy of TESLA, INC.
    G15084800Courtesy of TESLA, INC.

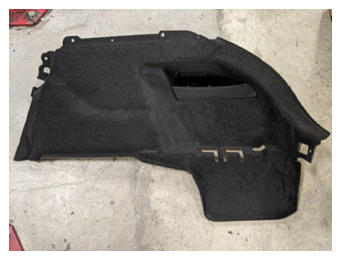

  12. Remove the RH trunk side trim from the vehicle.
    G15084801Courtesy of TESLA, INC.
