Trim - Side - Trunk - LH - Remove And Replace: Install

  1. Position the LH trunk side trim on the vehicle.

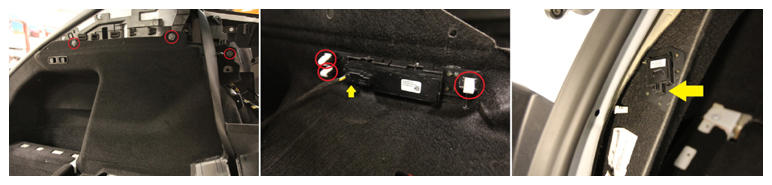

  2. Connect the electrical harnesses (x2) to the switches on the LH trunk side trim, and then install the clips (x6) that attach the trim to the vehicle.
    G15084791Courtesy of TESLA, INC.

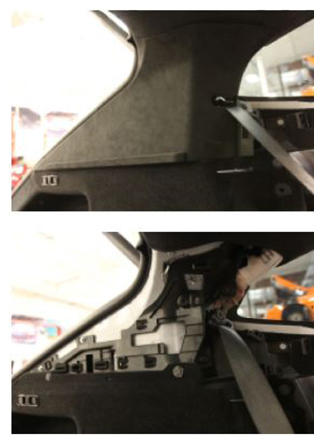

  3. Position the LH upper C-pillar trim on the vehicle, and then install the clips (x7) that attach the trim to the vehicle.
    G15084792Courtesy of TESLA, INC.
  4. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove And Replace) .

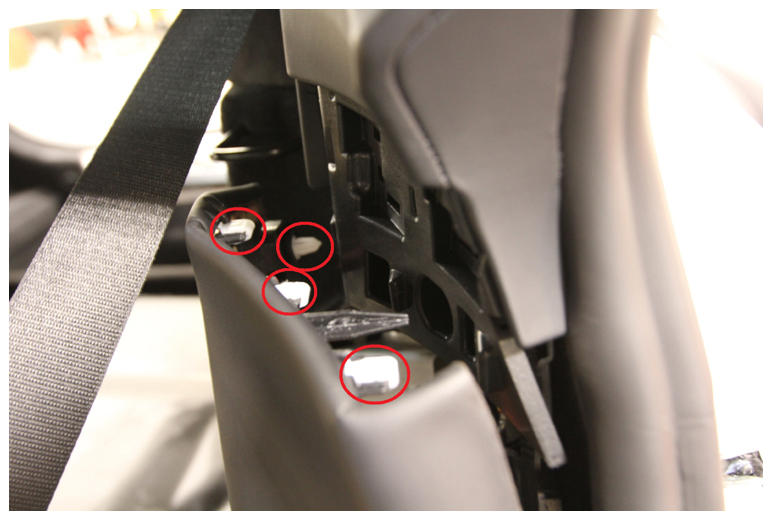

  5. Install the clips (x4) and tab that attach the LH lower C-pillar trim to the LH middle C-pillar trim.
    G15084793Courtesy of TESLA, INC.
  6. Install the LH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  7. Install the trunk floor front trim. See Trim - Front - Floor - Trunk (Remove And Replace) .
  8. Install the LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH (Remove And Replace) .
  9. Install the rear wall rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  10. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  11. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
