Trim - Middle - Instrument Panel - RH - Remove And Replace: Install

  1. Install Fasten the tabs (x14) that attach the RH instrument panel middle trim to the instrument panel.

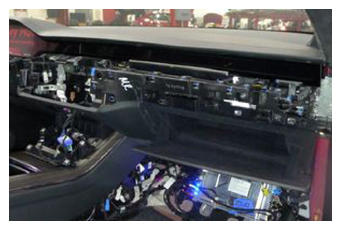

    G15084178Courtesy of TESLA, INC.

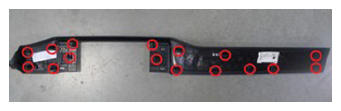

    G15084179Courtesy of TESLA, INC.

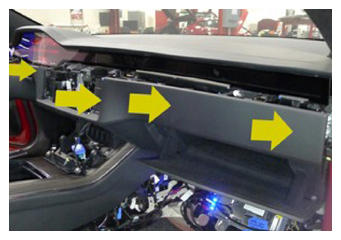

    G15084180Courtesy of TESLA, INC.
  2. Fasten the tabs (x4) that attach the instrument panel closeout panel to the instrument panel.

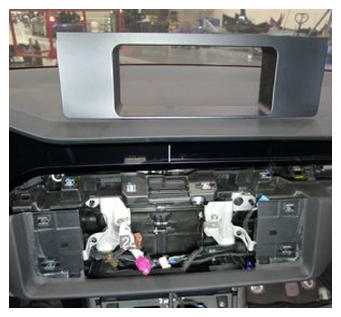

    G15084181Courtesy of TESLA, INC.

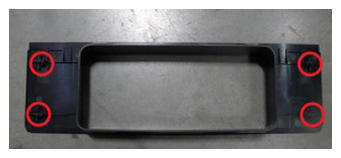

    G15084182Courtesy of TESLA, INC.

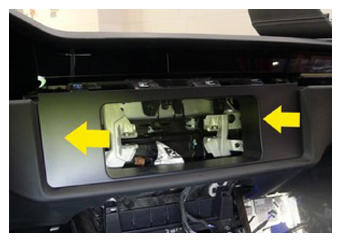

    G15084183Courtesy of TESLA, INC.
  3. Install the touchscreen. See TOUCHSCREEN (HW3) (REMOVE AND REPLACE) .
  4. Install the instrument panel service panel. See SERVICE PANEL - INSTRUMENT PANEL (REMOVE AND REPLACE) .
  5. Install the center console phone dock. See PHONE DOCK - CENTER CONSOLE (REMOVE AND REPLACE) .
  6. Reconnect LV power. See LV POWER (DISCONNECT AND CONNECT) .
  7. Close the hood.
  8. Install the RH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  9. Install the RH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  10. Restore the front passenger seat back to its original position.
  11. Raise the RH front window and close the RH front door.
