Gap Hider - Steering Column - Upper - Remove And Replace: Remove

  1. Remove the LH mid A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  2. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove And Replace) .
  3. Move the steering column fully rearward and fully down.
  4. Remove the RH mid A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  5. Remove the RH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove And Replace) .
  6. Remove the touchscreen assembly, but do not remove the display mechanism from the touchscreen housing. See Touchscreen (Remove and Replace) .
  7. Remove the main instrument panel decor. See Decor - Instrument Panel - Main (Remove And Replace) .
  8. Remove the driver airbag. See Airbag - Driver (Remove and Replace) .
  9. Remove the steering yoke. See Steering Yoke (Remove and Replace) .
  10. Release the clips (x6) that attach the steering column upper shroud to the lower shroud, and then remove the upper shroud from the assembly.
    NOTE: Pull the shroud upward to release the clips.
    G15083818Courtesy of TESLA, INC.
    G15083819Courtesy of TESLA, INC.
    G15083820Courtesy of TESLA, INC.

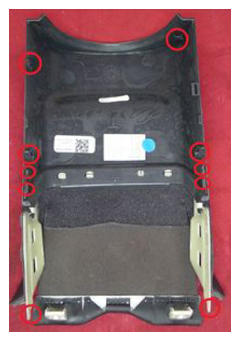

    G15083821Courtesy of TESLA, INC.
  11. Release the clips (x4) that attach the upper steering column gap hider to the vehicle, and then remove the gap hider from the vehicle.
    G15083822Courtesy of TESLA, INC.
    G15083823Courtesy of TESLA, INC.
