Gap Hider - Steering Column - Upper - Remove And Replace: Install

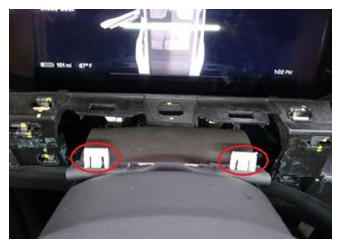

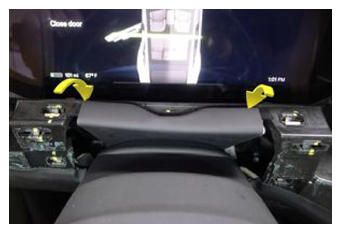

- Position the upper steering column gap hider into the vehicle, and then secure the clips (x4) that attach the gap hider to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

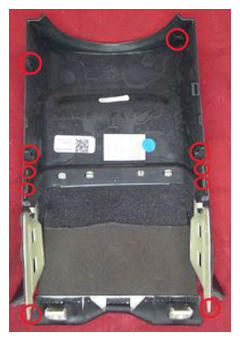

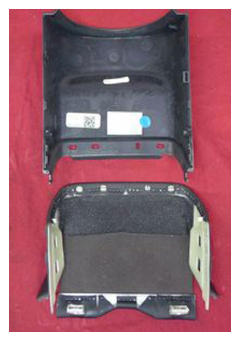

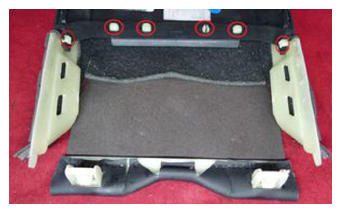

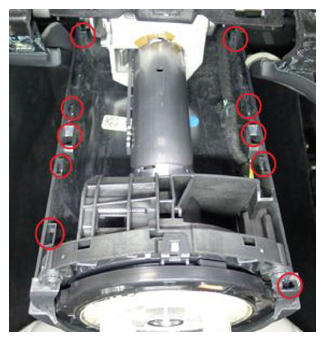

- Position the steering column upper shroud to the steering column, align the clips and datums, and then press the upper shroud downward to install it onto the lower shroud.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the steering yoke. See Steering Yoke (Remove and Replace)
.
- Install the driver airbag. See Airbag - Driver (Remove and Replace)
.
- Install the main instrument panel decor. See Decor - Instrument Panel - Main (Remove And Replace) .
- Install the touchscreen, reconnect LV power, and install the rear underhood apron. See Touchscreen (Remove and Replace)
.
- Move the steering column back to the original position.
- Install the LH and RH instrument panel end caps. See End Cap - Instrument Panel - LH (Remove And Replace) .
- Install the LH and RH mid A-pillar trims. See Trim - A-Pillar - Middle - LH (Remove and Replace)
.
