Cover - Footwell - Passenger - Remove And Replace: Remove

  1. Open the RH front door.
  2. Move the front passenger seat fully rearward.

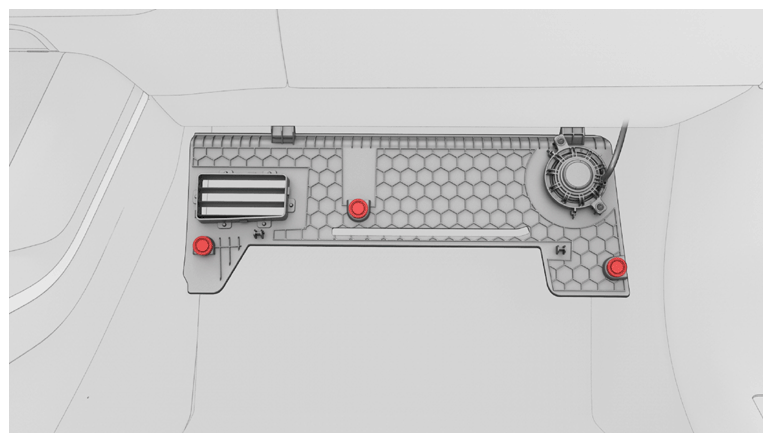

  3. Pull down to release the passenger footwell cover, but do not remove the cover as there is a connector still connected.
    NOTE: The passenger footwell cover is secured using magnets.
    G15083536Courtesy of TESLA, INC.

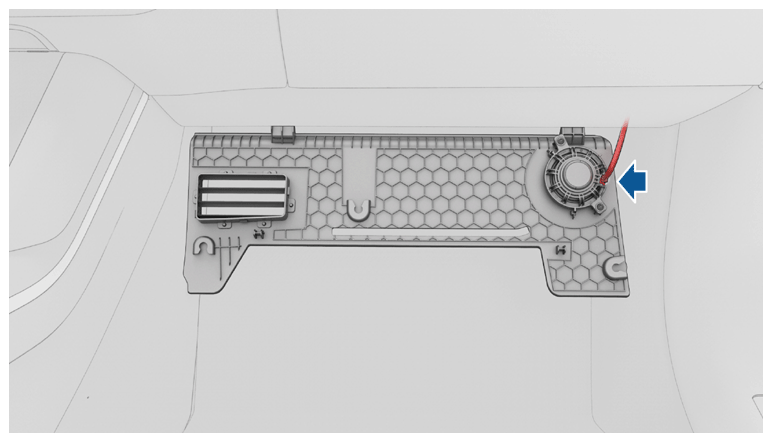

  4. Disconnect the electrical connector, and then remove the passenger footwell cover from the vehicle.
    G15083537Courtesy of TESLA, INC.

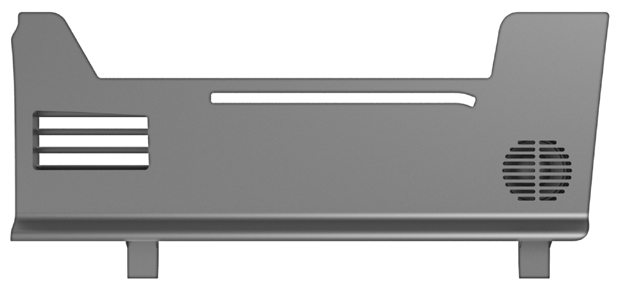

    G15083538Courtesy of TESLA, INC.
