Cover - Footwell - Passenger - Remove And Replace: Install

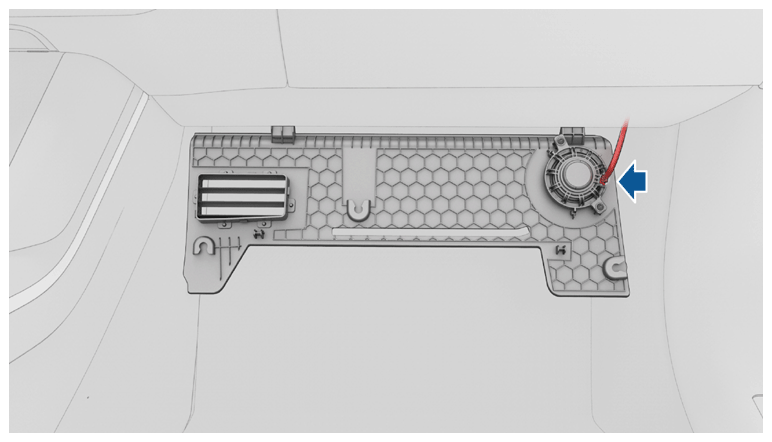

  1. Position the passenger footwell cover into the vehicle, and then connect the electrical connector.
    G15083539Courtesy of TESLA, INC.

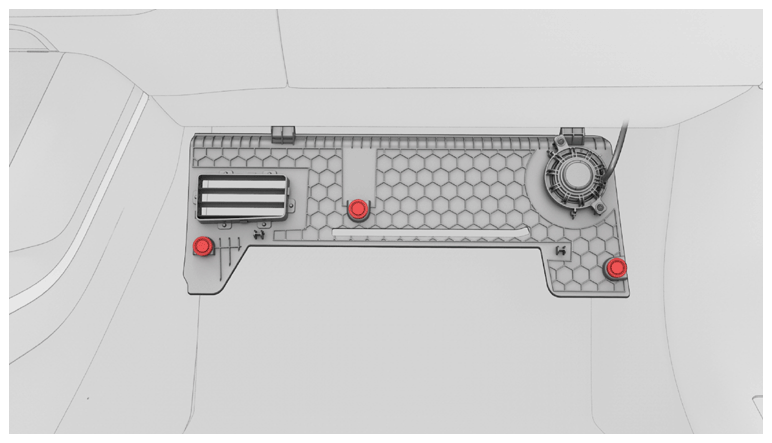

  2. Secure the magnets that attach the passenger footwell cover to the vehicle.
    G15083540Courtesy of TESLA, INC.
  3. Move the front passenger seat to its original position.
  4. Close the RH front door.
