Trim - Liftgate Trough - LH - Remove And Replace: Install

  1. Use an Isopropyl Alcohol (IPA) wipe to clean any adhesive residue or dirt. Allow the area to dry for 1 minute before continuing.
    NOTE: Cleaning the surface will allow the new adhesive to stick to the body properly.
    G15081417Courtesy of TESLA, INC.
  2. Apply double sided tape adhesive onto the back side of the LH liftgate trough trim, if the new trim does not come with tape.

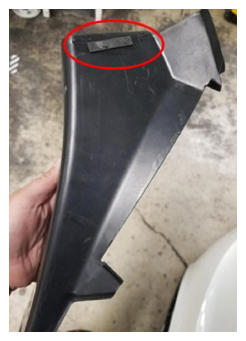

    G15081418Courtesy of TESLA, INC.
  3. Install the LH liftgate trough trim:
    1. Slide the edge of the liftgate trough trim under the tail light.
    2. Slowly push the trim downward toward the quarter panel.
      NOTE: Verify the bottom tabs are positioned behind the bumper.
    3. Fully seat the seal over the trim.

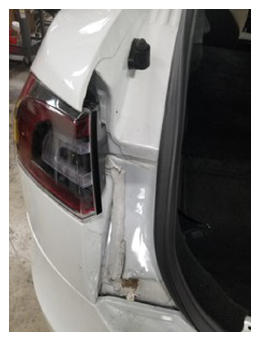

    G15081419Courtesy of TESLA, INC.

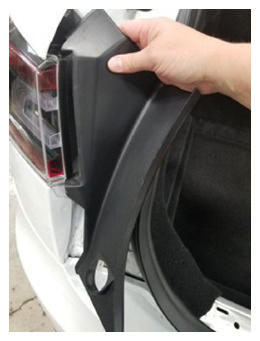

    G15081420Courtesy of TESLA, INC.

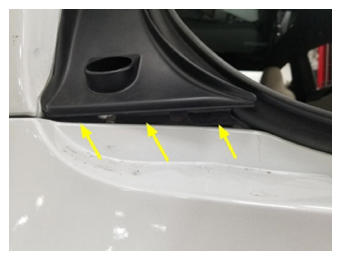

    G15081421Courtesy of TESLA, INC.

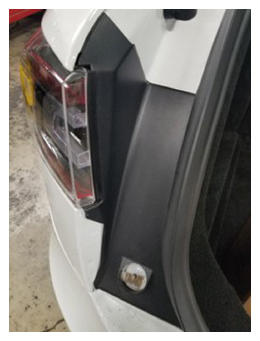

    G15081422Courtesy of TESLA, INC.
  4. Install the LH side liftgate stop by turning it clockwise.
    NOTE: Hand tight the side liftgate stop only.
    G15081423Courtesy of TESLA, INC.

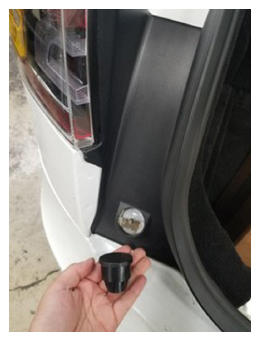

    G15081424Courtesy of TESLA, INC.

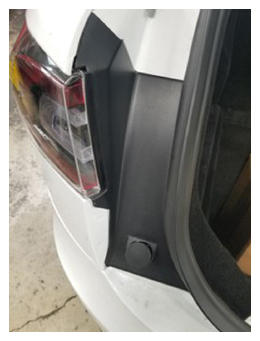

    G15081425Courtesy of TESLA, INC.
  5. Close the liftgate.

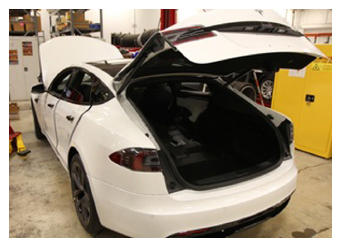

    G15081426Courtesy of TESLA, INC.

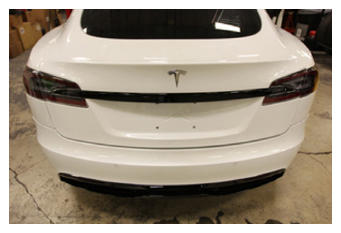

    G15081427Courtesy of TESLA, INC.
