Glass - Roof - Fixed - Remove And Replace: Remove

  1. Remove the LH mid A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  2. Remove the LH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
  3. Remove the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  4. Remove the driver sun visor. See Sun Visor - LH (Remove and Replace) .
  5. Repeat step  1 through step  4 for the RH side of the vehicle.
  6. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  7. Remove the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  8. Remove the upper B-pillar trim. See Trim - B- Pillar - Upper - LH (Remove and Replace) .

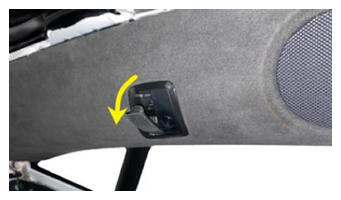

  9. Push open the LH rear coat hook.
    G15078701Courtesy of TESLA, INC.
  10. Pry open to release the tabs (x2) that attach the LH rear coat hook screw cover.

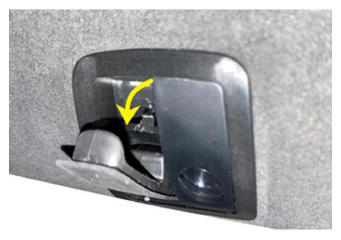

    G15078702Courtesy of TESLA, INC.

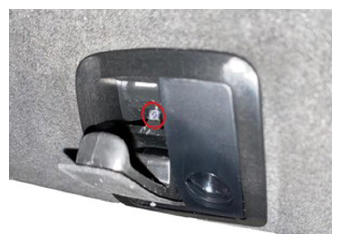

  11. Remove the screw that attaches the LH rear coat hook to the headliner.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    G15078703Courtesy of TESLA, INC.
  12. Repeat step  8 through step  11 for the RH side of the vehicle.
  13. Fold the LH 2nd row seat to the down position.
  14. Remove the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace) .

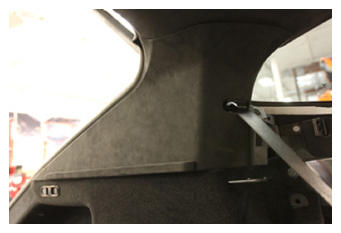

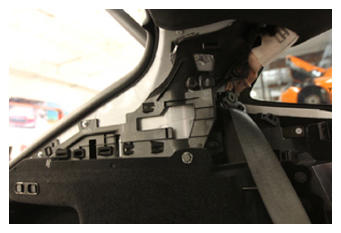

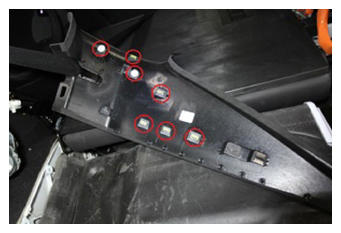

  15. Release the clips (x7) that attach the LH upper C-pillar trim, and then move the trim aside. Repeat this step for the RH trim.
    G15078704Courtesy of TESLA, INC.
    G15078705Courtesy of TESLA, INC.
    G15078706Courtesy of TESLA, INC.
  16. Remove the bolts (x2) that attach the rear of the headliner to the body.

    Torque 3 N.m

    NOTE: The bolts are located on the LH and RH sides of the headliner.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

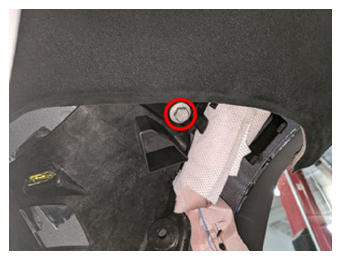

    G15078707Courtesy of TESLA, INC.

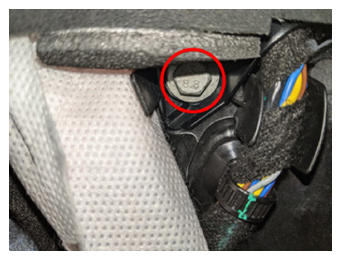

    G15078708Courtesy of TESLA, INC.

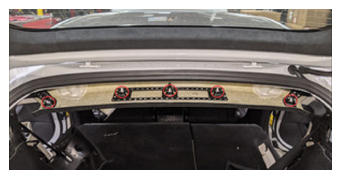

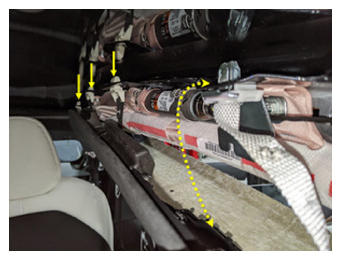

  17. Release the clips (x18) and hooks (x2) that attach the headliner to the body.
    NOTE: Headliner will be supported by tethers (x8) when released; push upward and inward to release hooks on the coat hook assemblies from the body.

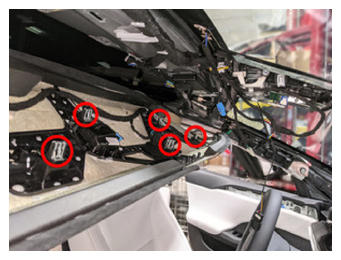

    G15078709Courtesy of TESLA, INC.
    G15078710Courtesy of TESLA, INC.
    G15078711Courtesy of TESLA, INC.

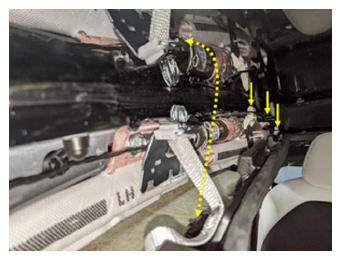

    G15078712Courtesy of TESLA, INC.
  18. Close the liftgate.

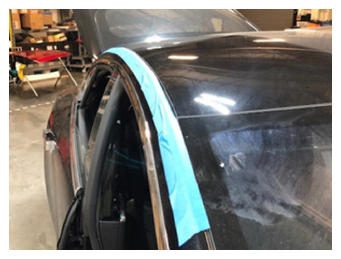

  19. Apply masking tape to cover the side rails and front corners of the liftgate.
    G15078713Courtesy of TESLA, INC.

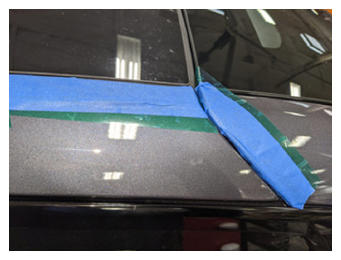

    G15078714Courtesy of TESLA, INC.
  20. Measure and record gaps from the fixed roof glass to windshield, body sides and liftgate glass.
    NOTE: Measurements will be used during installation of new glass.

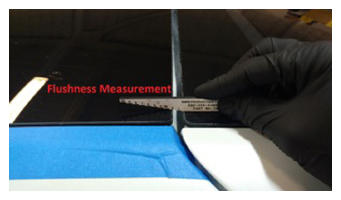

    G15078715Courtesy of TESLA, INC.

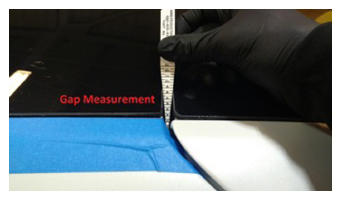

    G15078716Courtesy of TESLA, INC.
  21. Open the liftgate.
  22. Apply masking tape to protect the headliner.

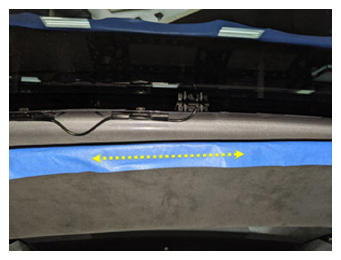

    G15078717Courtesy of TESLA, INC.
  23. Prepare a pair of T-handles with square wire 6 feet long.
  24. Insert the tool through the fixed roof glass urethane at the rear corner.

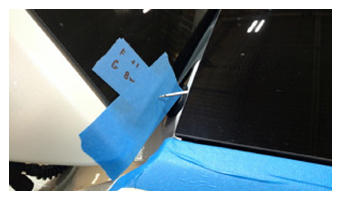

    G15078718Courtesy of TESLA, INC.
  25. Attach the square wire and pull the tool back through into the vehicle.

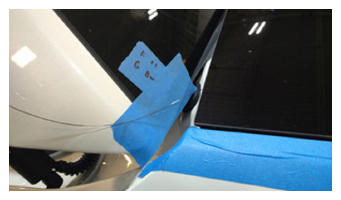

    G15078719Courtesy of TESLA, INC.
  26. Insert the square wire into one T-handle.

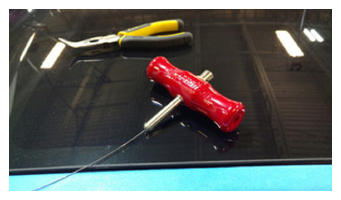

    G15078720Courtesy of TESLA, INC.
  27. Attach a second T-handle.

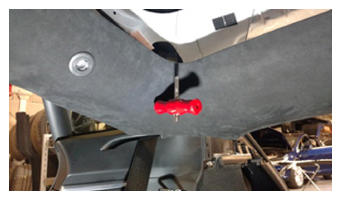

    G15078721Courtesy of TESLA, INC.

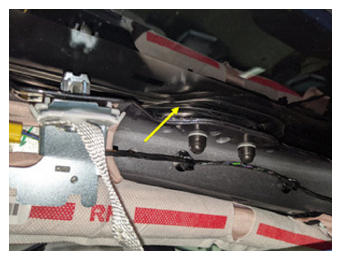

  28. With assistance, use the T-handles to cut the urethane securing the fixed roof glass to the body.
    NOTE: Use caution near XM antenna, roof rack blocks, and bolts for brackets near B-pillars.
    G15078722Courtesy of TESLA, INC.
    G15078723Courtesy of TESLA, INC.

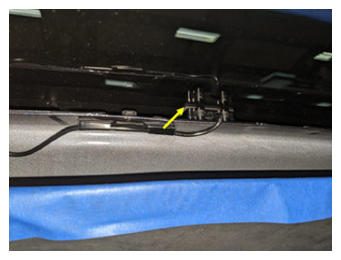

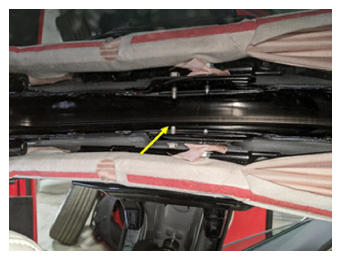

    G15078724Courtesy of TESLA, INC.
  29. With assistance, attach suction cups to the roof glass at each corner.

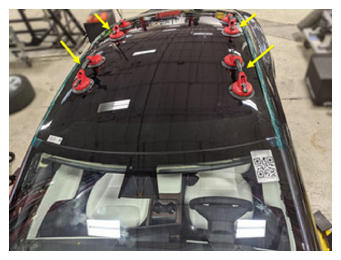

    G15078725Courtesy of TESLA, INC.
  30. With assistance, remove the fixed roof glass from the vehicle.
    NOTE: Discard per local regulations.

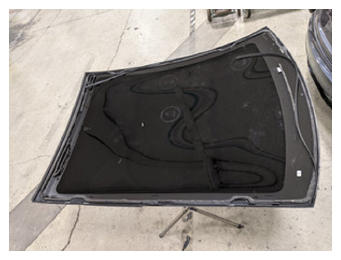

    G15078726Courtesy of TESLA, INC.

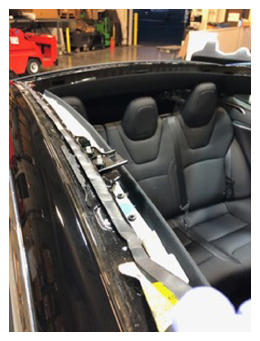

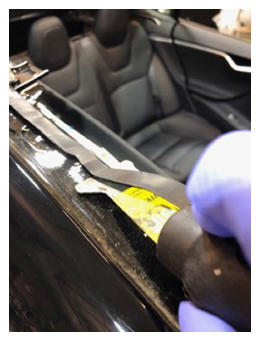

  31. Use a scraper to remove the old urethane from the body.
    NOTE: Ensure residual urethane is 1 mm or less in thickness.
    G15078727Courtesy of TESLA, INC.
    G15078728Courtesy of TESLA, INC.

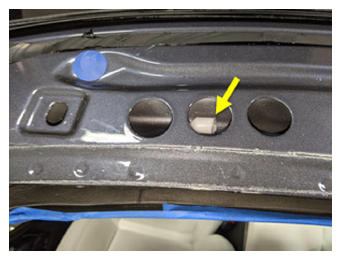

  32. Remove the datums and any other debris from the body.
    G15078729Courtesy of TESLA, INC.

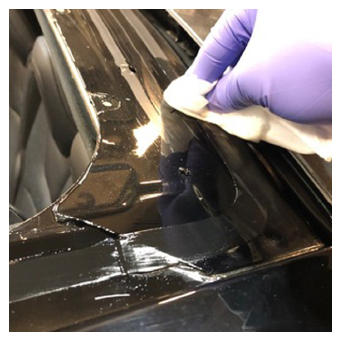

  33. Use IPA wipes to clean the body surface.
    NOTE: Allow 1 minute of dry time.
    G15078730Courtesy of TESLA, INC.

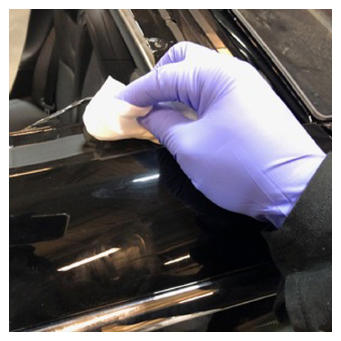

    G15078731Courtesy of TESLA, INC.

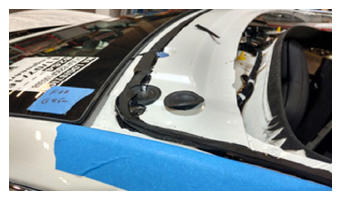

  34. Replace any body plugs or tape that were damaged during removal or cleaning.
    G15078732Courtesy of TESLA, INC.

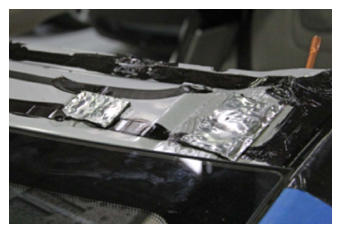

    G15078733Courtesy of TESLA, INC.

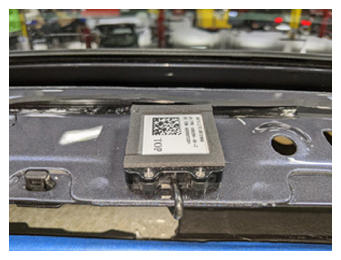

  35. Inspect the XM antenna to make sure it is secure and the foam is not damaged.
    NOTE: If damaged, replace as needed.
    G15078734Courtesy of TESLA, INC.

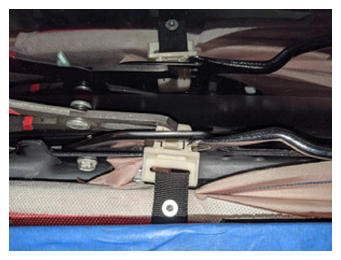

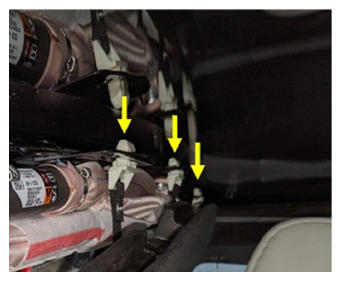

  36. Release the tether clips (x6) from the body.

    Tip: Use of the following tool(s) is recommended:

    • #2ZPP2 - GearWrench Push Pin Pliers
    G15078735Courtesy of TESLA, INC.
    G15078736Courtesy of TESLA, INC.

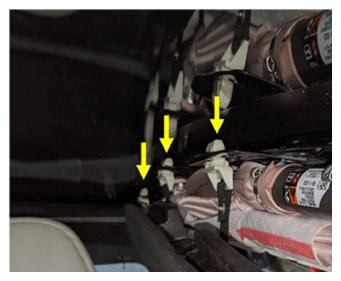

    G15078737Courtesy of TESLA, INC.
