Speaker - Rear Door - LH - Remove And Replace: Install

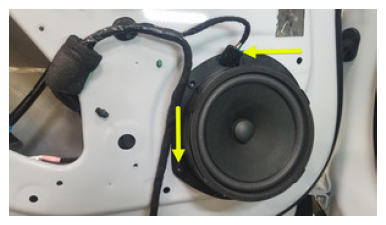

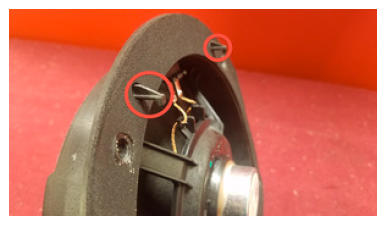

Position the LH rear door speaker onto the door assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

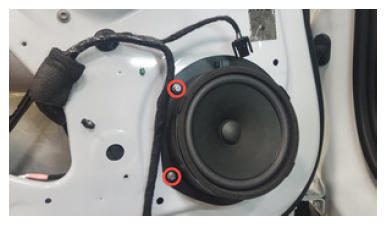

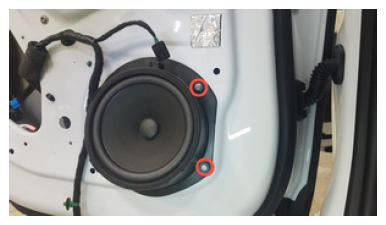

Install the bolts (x4) that attach the LH rear door speaker to the LH rear door.
4 N.m (2.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

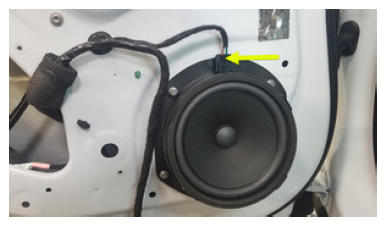

Connect the LH rear door speaker electrical connector.

Courtesy of TESLA, INC.
Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
