- Open RH front door
- Lower RH front window
- Move RH front seat backward

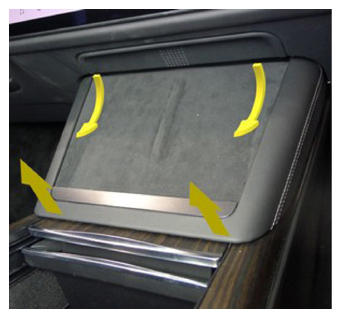

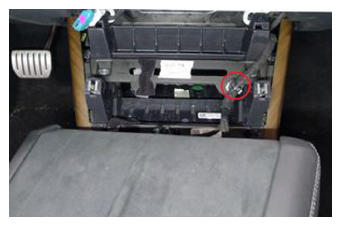

- Release phone dock
NOTE:
4x clips, 2x datums, Pull up at bottom and swing out from under instrument panel
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

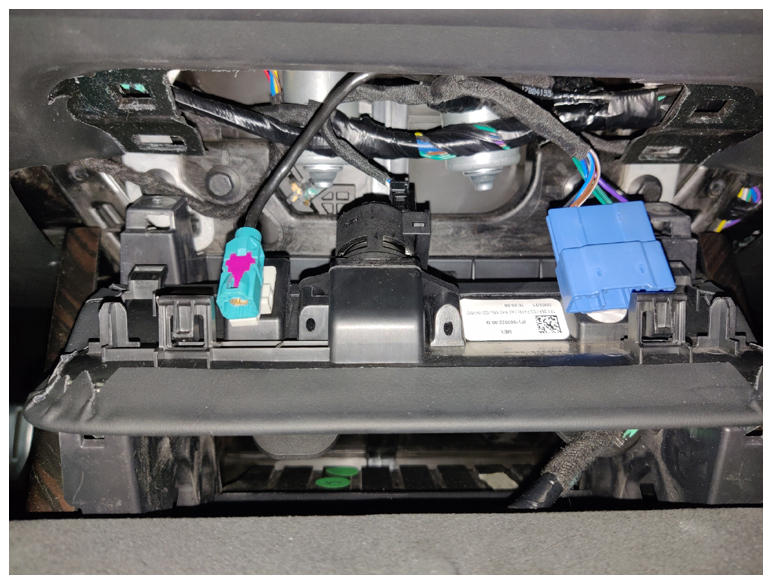

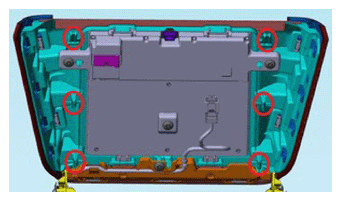

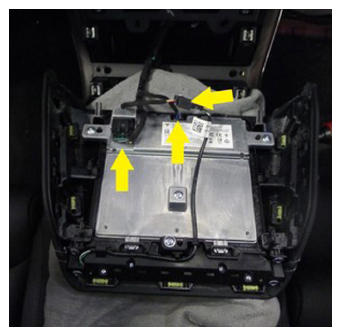

- Remove phone dock
NOTE:
3x connectors, 1x clip, Take caution to release connector locks before pulling straight out of each socket to avoid damage
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

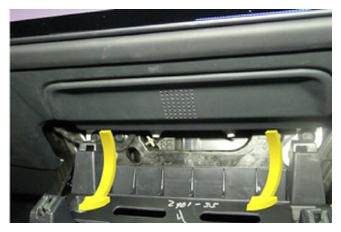

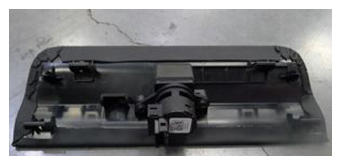

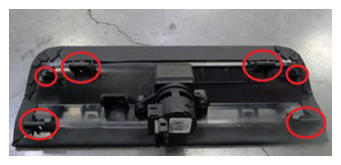

- Release IP service panel
NOTE:
4x tabs, 2 datums
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release diagnostic and CAN harnesses from IP service panel
NOTE:
2x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

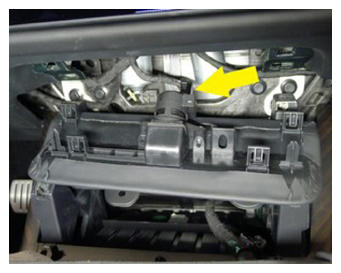

- Remove IP service panel
NOTE:
1x connector
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

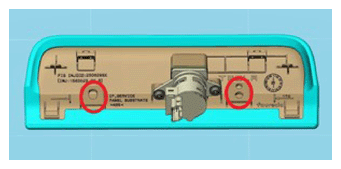

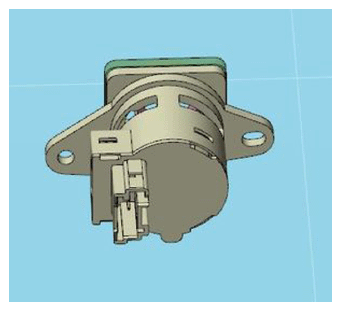

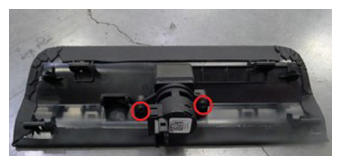

- Remove cabin temperature sensor fan
NOTE:
2x screws, T20, 2 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install cabin temperature sensor fan
NOTE:
2x screws, T20, 2 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Secure IP service panel connector
NOTE:
1x connector
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Secure diagnostic and CAN harnesses to IP service panel
NOTE:
2x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

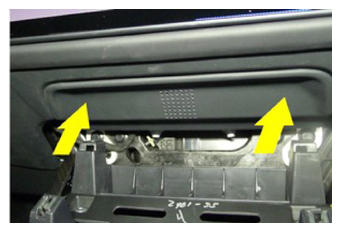

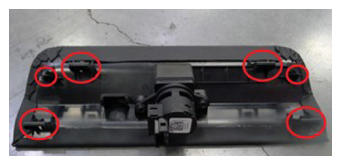

- Install IP service panel
NOTE:
4x tabs, 2 datums
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

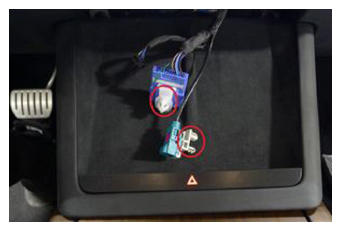

- Install phone dock connections
NOTE:
3x connectors, 1x clip
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

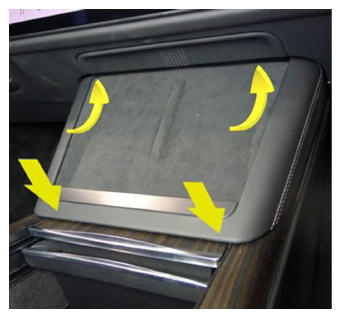

- Install phone dock
NOTE:
2x datums, 4 tabs, Slide datums forward into IP and secure tabs down into center console
 Courtesy of TESLA, INC.
|
- Move RH front seat to original position
- Raise RH front window
- Close RH front door
