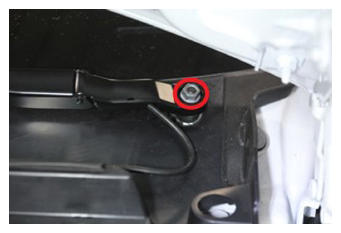

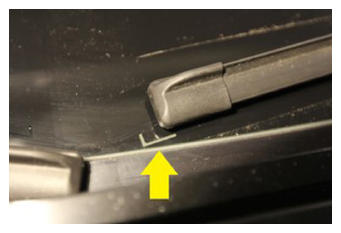

Position the wiper arm to the vehicle and line up the wiper blade to the reference mark on the windshield, then install the nut that attaches the wiper arm to the vehicle.
NOTE:
1x nut, 15 mm, 26 N.m
Courtesy of TESLA, INC.
Courtesy of TESLA, INC.

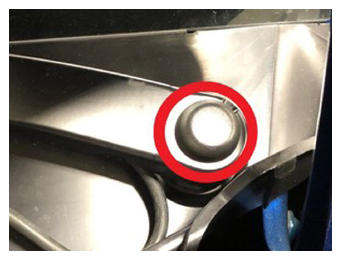

Install the LH wiper arm nut cover.
Courtesy of TESLA, INC.

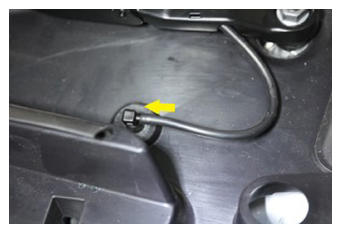

Connect the LH wiper arm hose to the washer nozzle.
