Antenna - MIMO - LH - Remove And Replace: Install

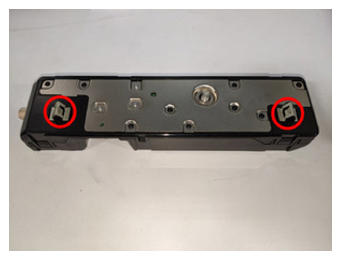

Install the LH MIMO antenna to the body.
NOTE: Make sure the clips (x2) are fully engaged.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

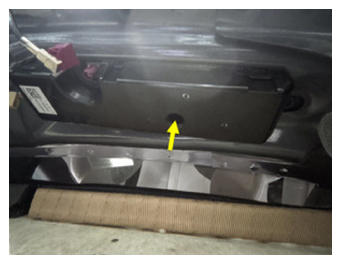

Install the bolt that attaches the LH MIMO antenna to the body.
9 N.m (6.6 ft-lbs)

NOTE: The bolt is captive inside the antenna housing.

Tip: Use of the following tool(s) is recommended:
- T30 bit
Courtesy of TESLA, INC.

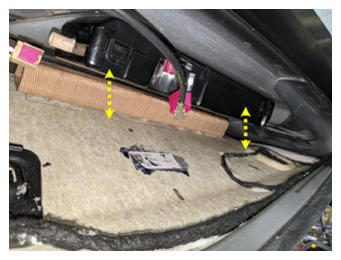

Connect the LH MIMO antenna electrical connectors (x2), and then engage the locking tabs.
NOTE: Rotate the coaxial cable for access to depress locking tabs.

Courtesy of TESLA, INC.

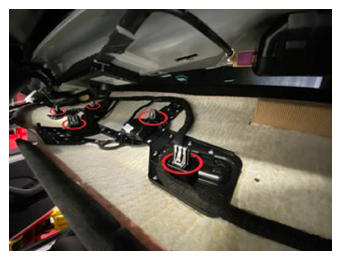

Secure the clips (x5) that attach the front of the headliner to the vehicle.

Courtesy of TESLA, INC.
Install the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
Install the passenger sun visor. See Sun Visor - LH (Remove and Replace) .
Install the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
Install the RH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
Repeat step 7 through step 10 for the LH side of the vehicle.
Install the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace)
Verify the BT, WiFi and LTE are functioning properly.
