Remove the LH repeater from the vehicle.
CAUTION:
If reinstalling the same side repeater, take care not to damage the mounting tabs.

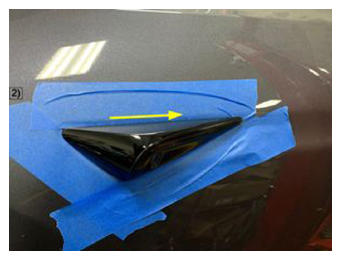

- Apply light, constant pressure toward the fender at the rear of the repeater, and maintain pressure until the repeater is removed.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

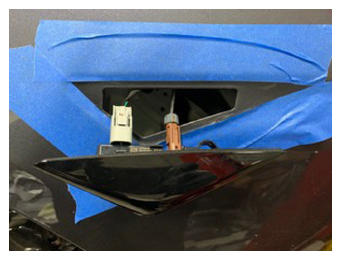

- Slide the repeater toward the rear of the vehicle until the front clip releases, then pull the repeater away from the fender until the front clip is outside of the fender.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

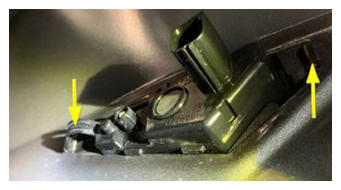

- Slide the repeater toward the front of the vehicle until the rear hook clip disengages from the fender.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
