Antenna - MIMO - LH - Remove And Replace: Remove

  1. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  2. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
  3. Remove the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  4. Remove the driver sun visor. See Sun Visor - LH (Remove and Replace) .
  5. Repeat step  1 through step  4 for the RH side of the vehicle.
  6. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  7. Remove the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .

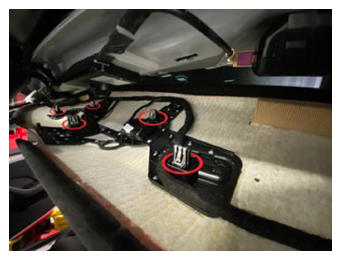

  8. Release the clips (x5) that attach the front of the headliner to the vehicle.
    G15101755Courtesy of TESLA, INC.

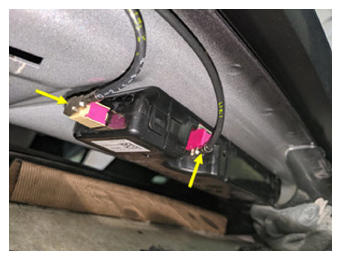

  9. Disconnect the LH MIMO antenna electrical connectors (x2).
    NOTE: Rotate the coaxial cable for access to depress locking tabs.
    G15101756Courtesy of TESLA, INC.

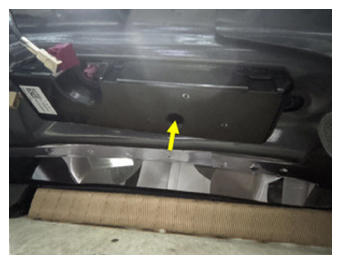

  10. Remove the bolt that attaches the LH MIMO antenna to the body.

    9 N.m (6.6 ft-lbs)

    NOTE: The bolt is captive inside the antenna housing and cannot be removed from the antenna.

    Tip: Use of the following tool(s) is recommended:

    • T30 bit
    G15101757Courtesy of TESLA, INC.

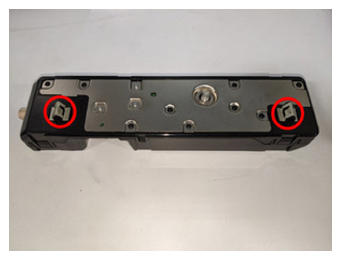

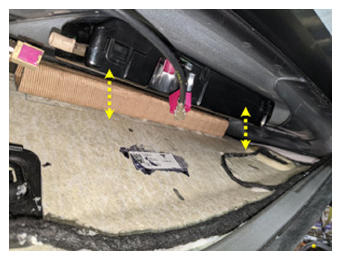

  11. Release the clips (x2) that attach the LH MIMO antenna to the body, and then remove the antenna from the vehicle.
    G15101758Courtesy of TESLA, INC.
    G15101759Courtesy of TESLA, INC.
