Hose - Washer - Cowl Screen - Remove And Replace: Install

  1. Install the cowl hose to the cowl screen panel.

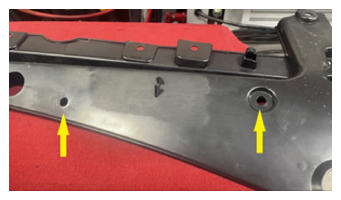

    G15092933Courtesy of TESLA, INC.

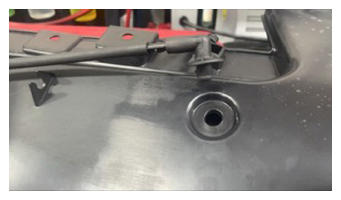

    G15092934Courtesy of TESLA, INC.
  2. Install the washer joints to the cowl hose.

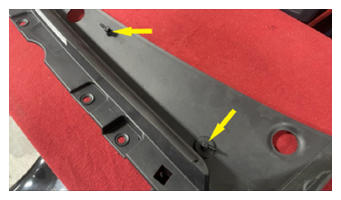

    G15092935Courtesy of TESLA, INC.
  3. Install the clips (x4) that attach the wiper cowl screen panel to the vehicle.
    NOTE: 4x push clips, 2x end tabs

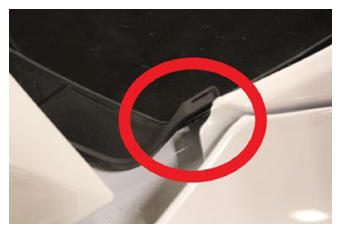

    G15092936Courtesy of TESLA, INC.

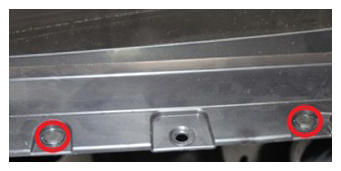

    G15092937Courtesy of TESLA, INC.

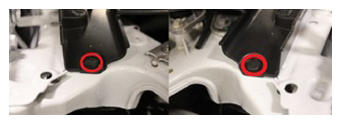

    G15092938Courtesy of TESLA, INC.
  4. Install the LH and RH wiper arms. See Wiper Arm - LH (Remove And Replace) .
  5. Install the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .
  6. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  7. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
