Light - License Plate - Remove And Replace: Remove

  1. Remove the liftgate applique. See Applique - Liftgate (Remove and Replace) .
  2. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  3. Remove the LH and RH reverse light. See Light - Fog/Reverse - Rear - LH (Remove And Replace) .
  4. Disconnect the electrical connector from the rear license plate light.
    G15092443Courtesy of TESLA, INC.
  5. Release the push tab that attaches the rear license plate lamp to the vehicle.

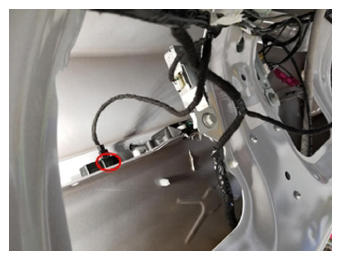

    G15092444Courtesy of TESLA, INC.

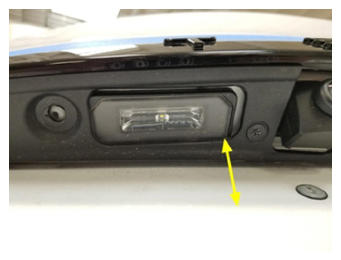

    G15092445Courtesy of TESLA, INC.
