Seal - Secondary - Front Door - LH - Remove And Replace: Remove
- Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace)
.
- Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace)
.

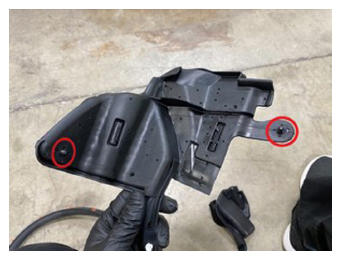

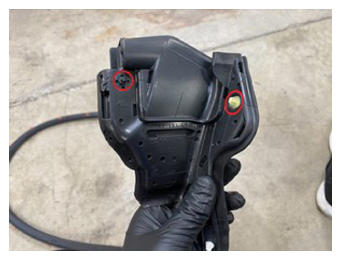

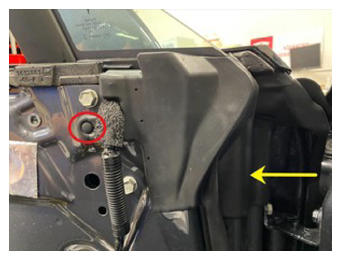

- Release the clips (x4) that attach the LH front door seal to the door assembly, and then remove the seal from the door assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

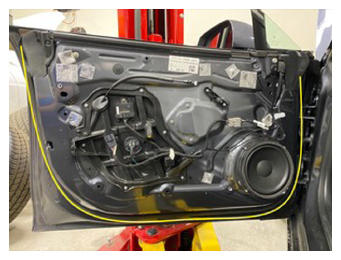

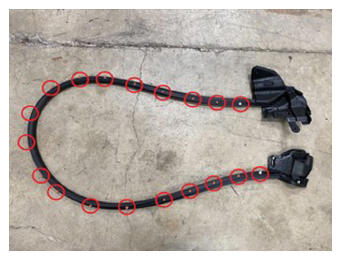

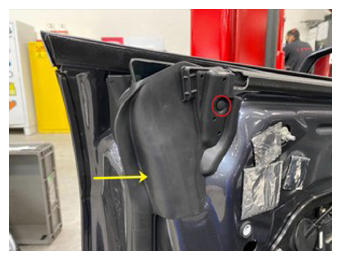

- Release the clips (x19) that attach the LH front door secondary seal to the door assembly, and then remove the seal from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
