Seal - Inner Belt - Front Door - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
  3. Remove the LH front door panel. See Panel - Door Trim - Front - LH (Remove and Replace) .

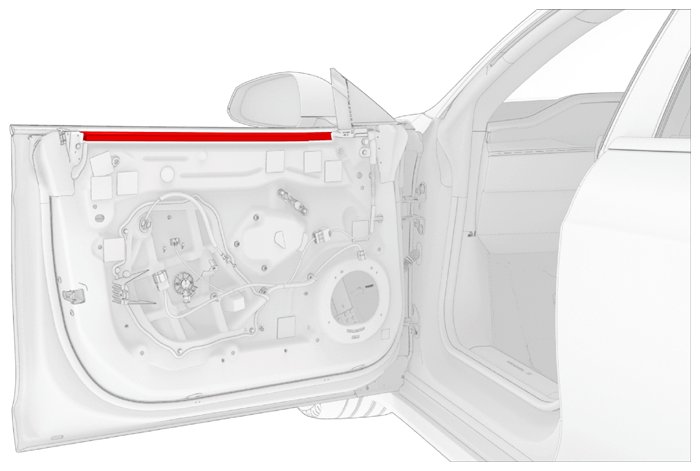

  4. Release the inner belt seal from the LH front door.

    Tip: Lift incrementally from side to side to release the seal.

    G15080520Courtesy of TESLA, INC.
