Seal - Body - Side - Front - Primary - LH - Remove And Replace: Remove
- Remove the LH B-pillar applique. See Applique - B-Pillar - LH (Remove And Replace)
.

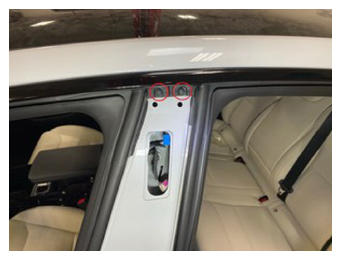

- Remove the clips (x2) that attach the LH primary front side body seal to the B-pillar.
 Courtesy of TESLA, INC.
|

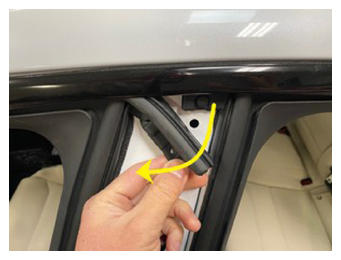

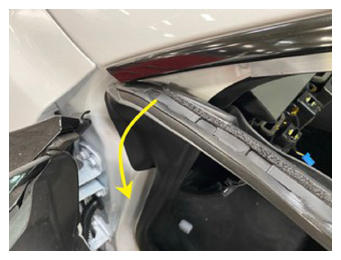

- Release LH front body side primary seal from bright molding
 Courtesy of TESLA, INC.
|

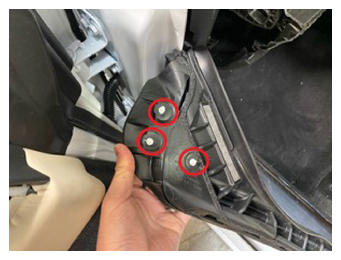

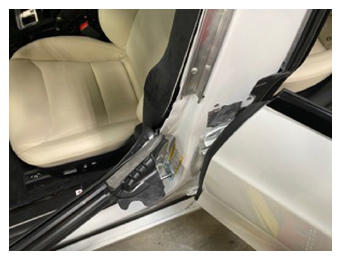

- Remove the clips (x3) that attach the LH primary front side body seal to the body.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

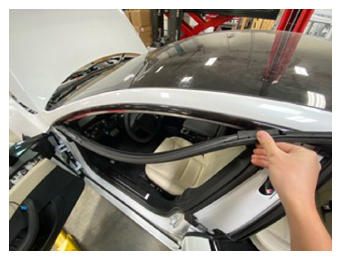

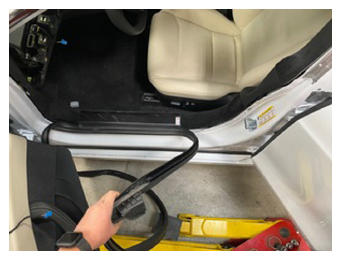

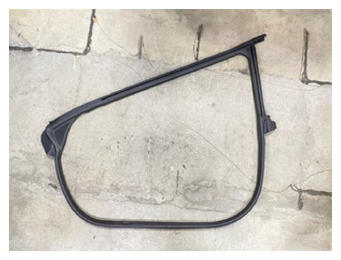

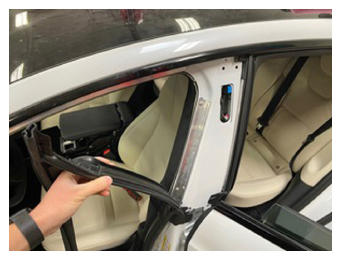

- Remove the LH primary front side body seal from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
