Noise Absorber - Motor Bay - Rear - Remove And Replace: Remove

  1. Remove the rear subframe assembly. See or Subframe Assembly - Rear (Plaid) (Remove and Install) .
  2. Release the brake line from the clips (x4) in the rear motor bay.

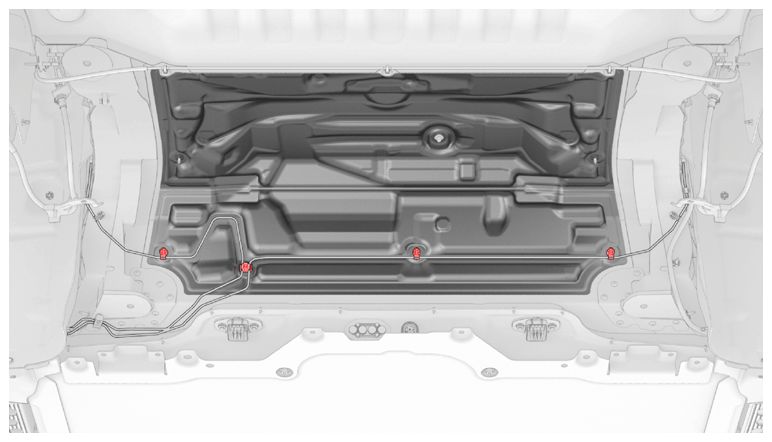

    G15081062Courtesy of TESLA, INC.
  3. Release the rear motor bay brake line clips (x4) from the vehicle body.
    NOTE: Rotate counterclockwise to aid in removal.

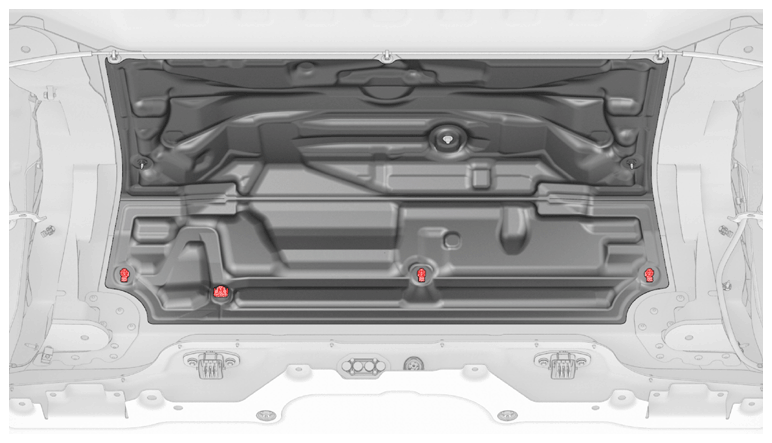

    G15081063Courtesy of TESLA, INC.
  4. Release the clips (x6) that attach the rear motor bay noise absorber to body.

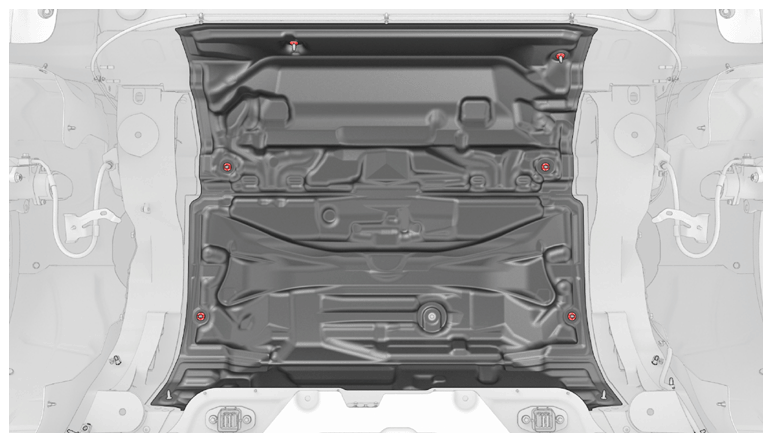

    G15081064Courtesy of TESLA, INC.
  5. Remove the rear motor bay noise absorber from the vehicle.

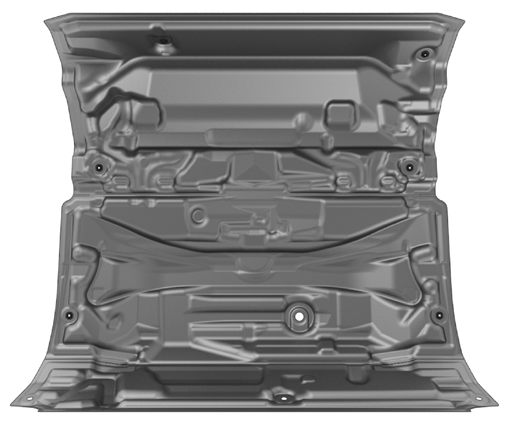

    G15081065Courtesy of TESLA, INC.
