Noise Absorber - Motor Bay - Rear - Remove And Replace: Install

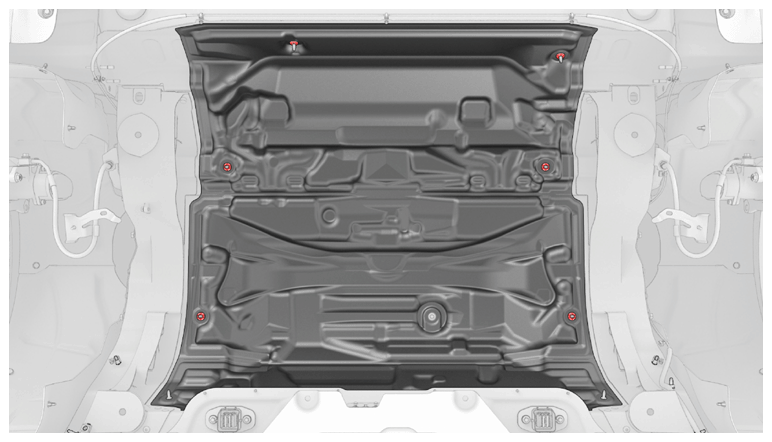

- Install the clips (x6) that attach the rear motor bay noise absorber to the body.

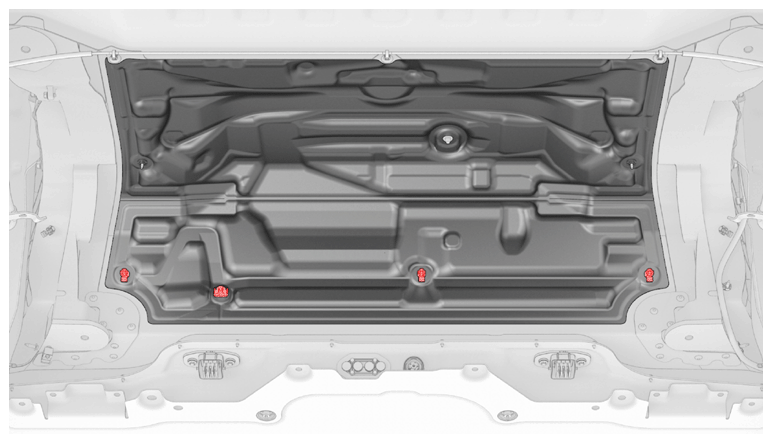

- Secure the brake lines clips (x4) in the rear motor bay.

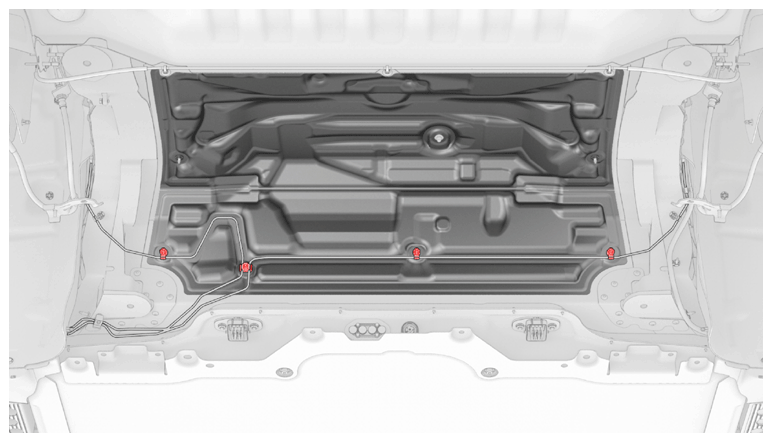

- Secure the rear motor bay brake line clips (x4) to the body.
- Install the rear subframe assembly. See or Subframe Assembly - Rear (Plaid) (Remove and Install) .
