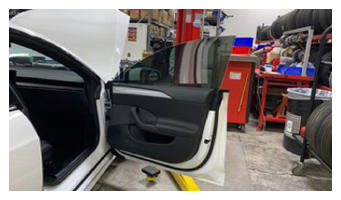

- Open LH front door
- Lower LH front window
- Set steering wheel straight ahead
 Courtesy of TESLA, INC.
|
- Adjust steering column fully rearward and fully down
NOTE:

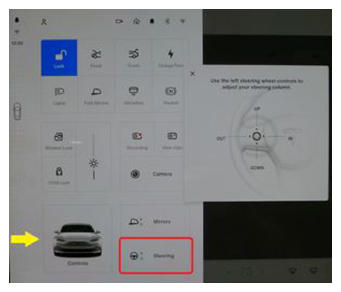

Via UI > Quick Controls > Steering Wheel, Use left steering wheel scroll wheel to adjust steering column
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

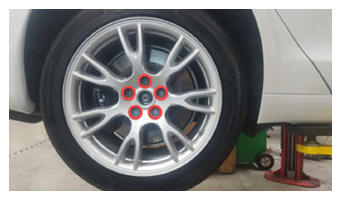

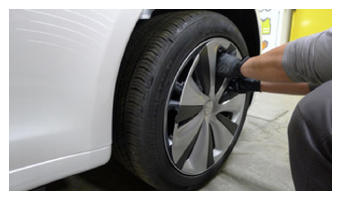

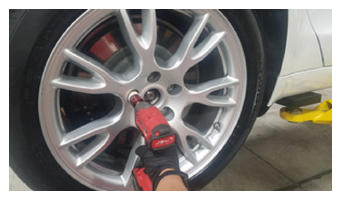

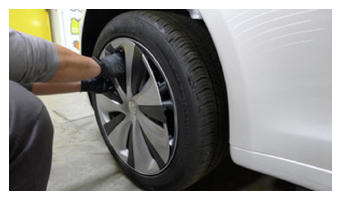

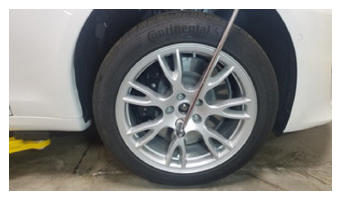

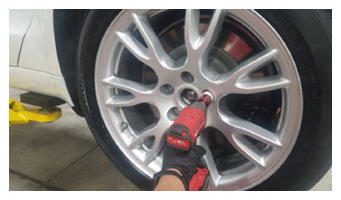

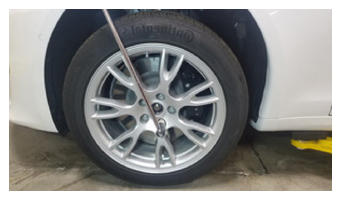

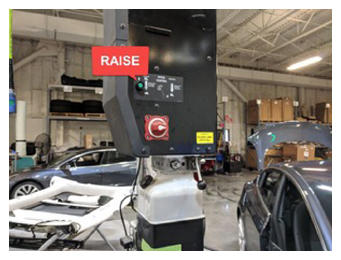

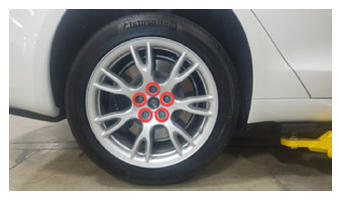

- Raise and support vehicle
NOTE:
Prepare to raise vehicle, Set air suspension to "Jack Mode", Position lift arm pads on vehicle jack pads
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

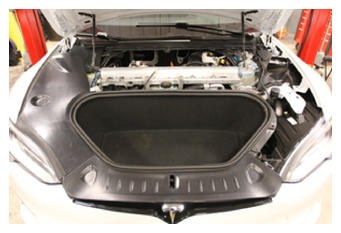

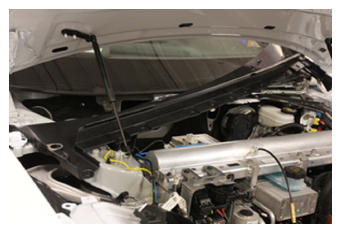

- Open hood
NOTE:
Via Center Display > Controls > Frunk Open

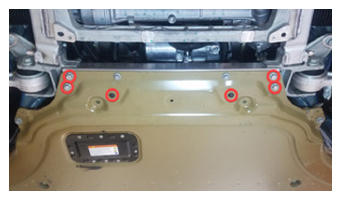

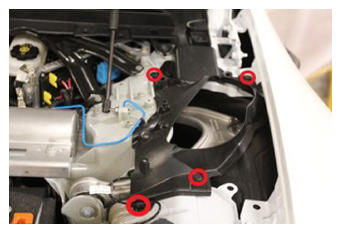

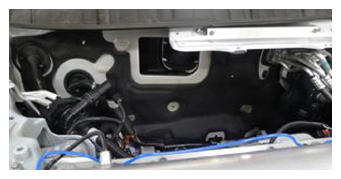

- Remove rear underhood apron
NOTE:
8x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

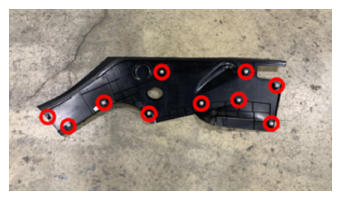

- Remove LH underhood apron
NOTE:
10x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH underhood apron
NOTE:
10x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

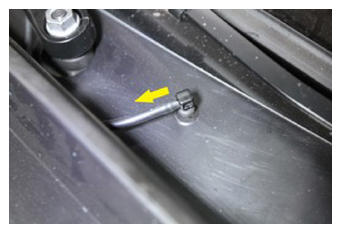

- Release LH wiper arm hose nozzle
NOTE:
1x hose
 Courtesy of TESLA, INC.
|
- Remove LH wiper arm nut cover
NOTE:
1x cover
 Courtesy of TESLA, INC.
|
- Remove LH wiper arm nut and release assembly
NOTE:
1x nut, 15 mm, 26 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release RH wiper arm hose nozzle
NOTE:
1x hose
 Courtesy of TESLA, INC.
|
- Remove RH wiper arm nut cover
NOTE:
1x cover
 Courtesy of TESLA, INC.
|
- Remove RH wiper arm nut and release assembly
NOTE:
1x nut, 15 mm, 26 N.m
 Courtesy of TESLA, INC.
|
- Release washer hose nozzle by LH shock tower cover
NOTE:
1x hose, 3x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

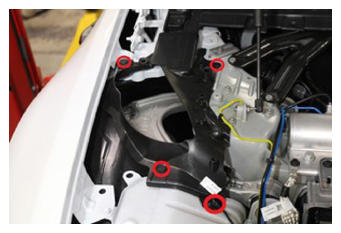

- Remove LH shock tower cover
NOTE:
3x push clips, 1x fir tree clip
 Courtesy of TESLA, INC.
|
- Remove RH shock tower cover
NOTE:
3x push clips, 1x fir tree clip
 Courtesy of TESLA, INC.
|

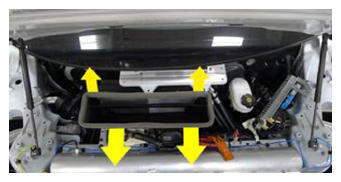

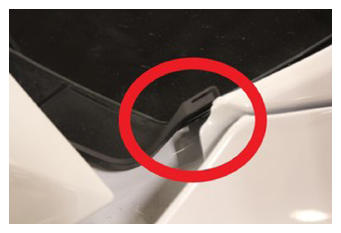

- Remove wiper cowl screen panel
NOTE:
4x push clips, 2x end tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Using center display, place wipers into "Service Mode"
NOTE:
via Controls > Service > Wiper Service Mode, If wiper module is not in service mode the RH pivot arm will not clear the V Brace crossmember during removal
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

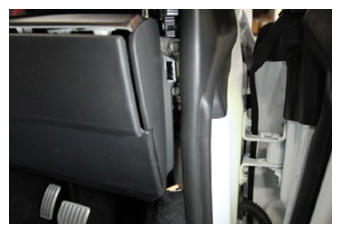

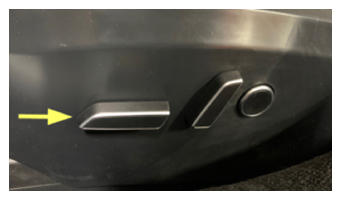

- Move LH front seat backward
 Courtesy of TESLA, INC.
|

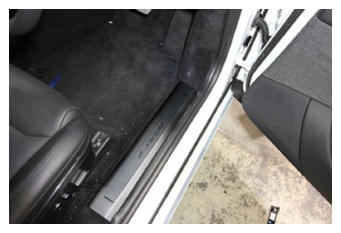

- Open RH front door
 Courtesy of TESLA, INC.
|
- Lower RH front window
 Courtesy of TESLA, INC.
|
- Move RH front seat backward
 Courtesy of TESLA, INC.
|

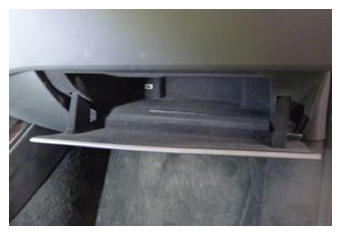

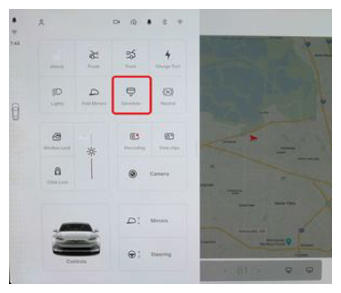

- Open glove box through UI
NOTE:
Via Controls > Glovebox
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Power off vehicle from center display
NOTE:
Via Controls > Safety & Security > Power Off
 Courtesy of TESLA, INC.
|

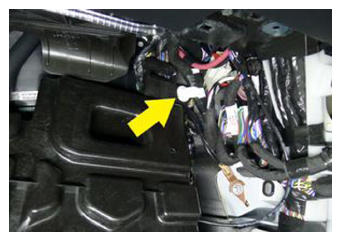

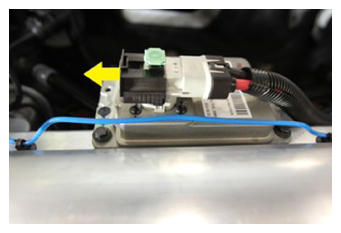

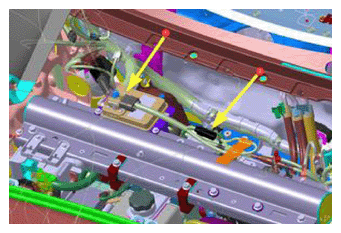

- Disconnect LV battery connector and First Responder Loop
NOTE:

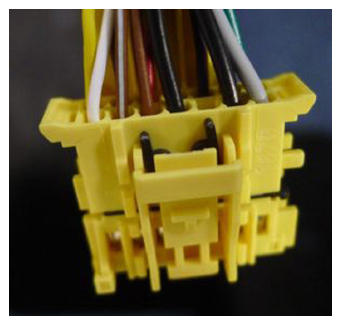

2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

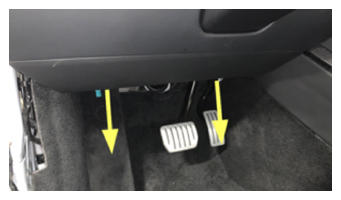

- Remove LH footwell cover
NOTE:
1x connector, 2x magnets
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

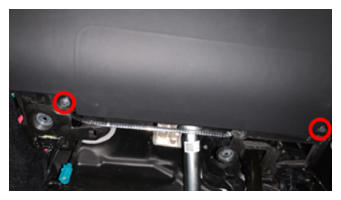

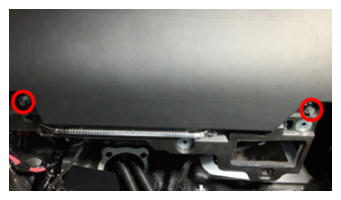

- Remove fasteners securing LH knee air bag assembly to vehicle
NOTE:
2x patch bolts, E10, 8 N.m, Discard after removal
 Courtesy of TESLA, INC.
|

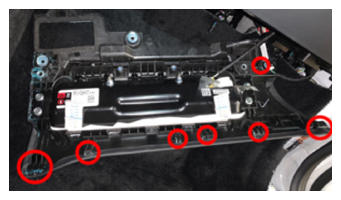

- Remove the LH knee air bag assembly from vehicle
NOTE:
3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove driver floor jumper air duct
NOTE:
1x tab
 Courtesy of TESLA, INC.
|

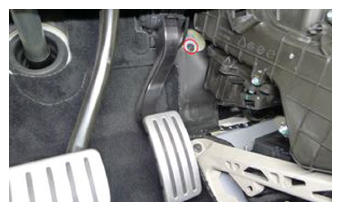

- Remove cotter clip from clevis pin on pedal assembly
NOTE:
1x clip, Remove by hand
 Courtesy of TESLA, INC.
|
- Remove clevis pin from brake pedal assembly
NOTE:
1x pin, Wiggle brake pedal to assist pin removal
 Courtesy of TESLA, INC.
|

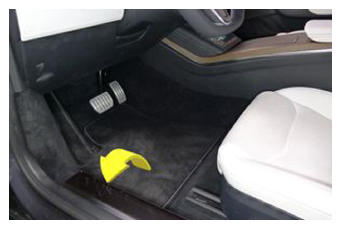

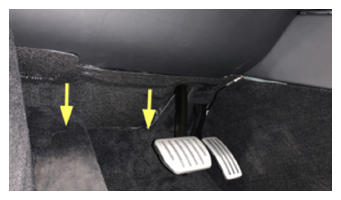

- Remove LH front floor mat
 Courtesy of TESLA, INC.
|

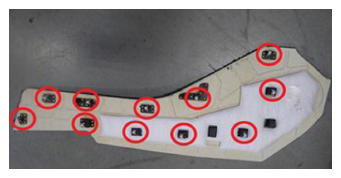

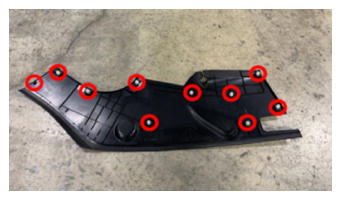

- Remove LH console side carpet
NOTE:
11x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

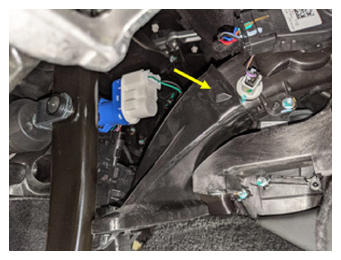

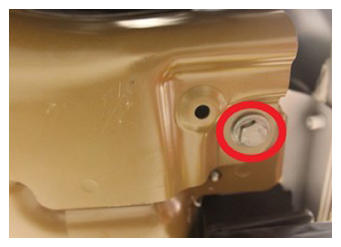

- Release LH HEPA assembly lower dash bolt
NOTE:
1x bolt, 10 mm, 7 N.m
 Courtesy of TESLA, INC.
|

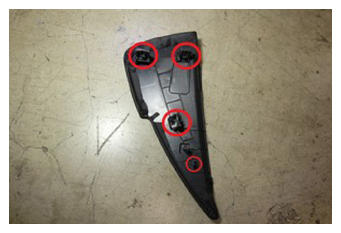

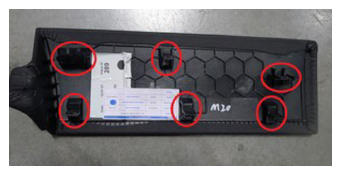

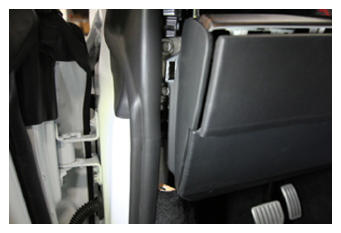

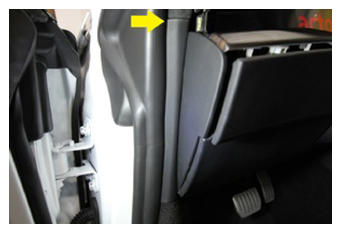

- Remove LH mid A-pillar trim
NOTE:
1x clip, 2x tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

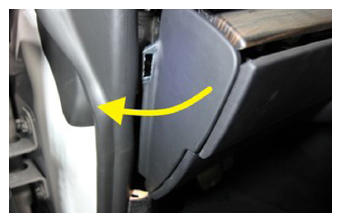

- Remove LH IP end cap
NOTE:
4x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

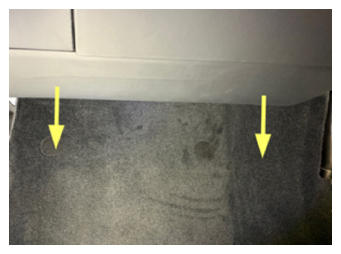

- Remove RH front floor mat
 Courtesy of TESLA, INC.
|
- Remove RH footwell cover
NOTE:
3x magnets, 1x connector
 Courtesy of TESLA, INC.
|
- Remove RH mid A-pillar trim
NOTE:
1x clip, 2x tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH lower A-pillar trim
NOTE:
7x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH IP end cap
NOTE:
4x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH console side carpet
NOTE:
11x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

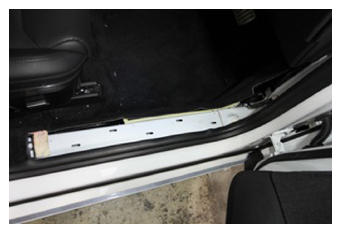

- Fold RH front cabin carpet aside for access
 Courtesy of TESLA, INC.
|
- Release harness from RH footrest panel
NOTE:
1x clip
 Courtesy of TESLA, INC.
|
- Remove RH footrest panel
NOTE:
2x bolts, 10 mm, 5 N.m, 1x nut, 10 mm, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release RH HEPA assembly lower dash bolt
NOTE:
1x bolt, 10 mm, 7 N.m
 Courtesy of TESLA, INC.
|
- Remove the touchscreen. See Touchscreen (Remove and Replace)
.

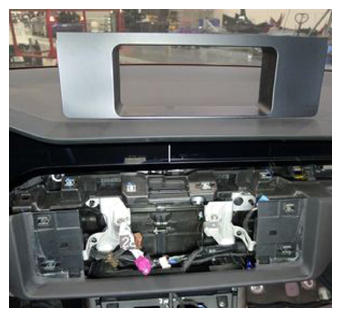

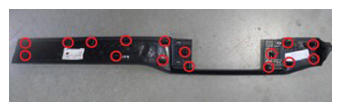

- Remove IP Decor
NOTE:
21x clips, 6x datums, 4x connectors, Release each IP decor connector clip from IP carrier then disconnect from IP harness
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

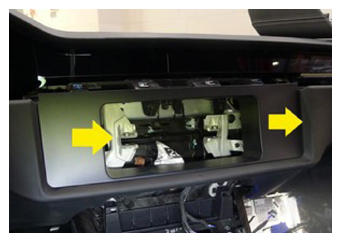

- Remove IP closeout panel
NOTE:
4x tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove IP LH mid panel
NOTE:
6x tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove IP RH mid Panel
NOTE:
14x tabs, 2 datums
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH footwell cover
NOTE:
3x magnets, 1x connector
 Courtesy of TESLA, INC.
|
- Remove fasteners securing RH knee air bag assembly to vehicle
NOTE:
2x patch bolts, E10, 8 N.m, Discard after removal
 Courtesy of TESLA, INC.
|
- Remove RH knee air bag assembly from vehicle
NOTE:
2x connectors, 6x tabs, 1x clip, Release 2x locking tab on airbag connector
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

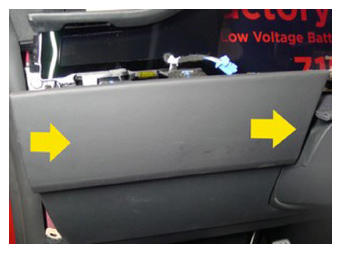

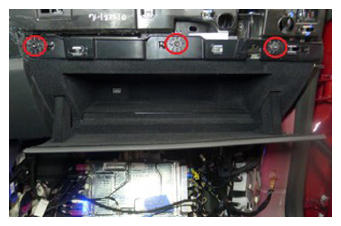

- Release glove box
NOTE:
5x screws, T20, 3 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release glove box connectors
NOTE:
3x connectors
 Courtesy of TESLA, INC.
|
- Remove USB outlet
NOTE:
2x screws, T20, 3 N.m, 1x clip
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

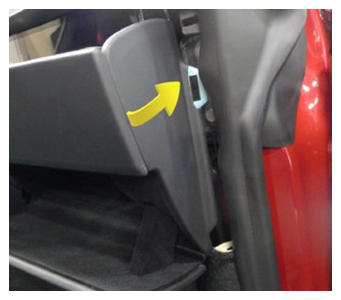

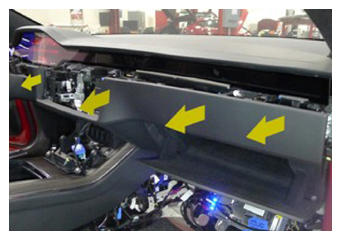

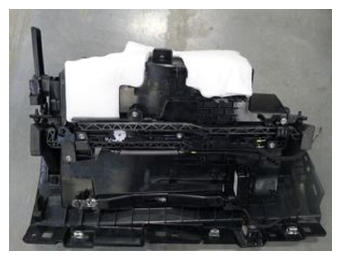

- Remove glove box
 Courtesy of TESLA, INC.
|

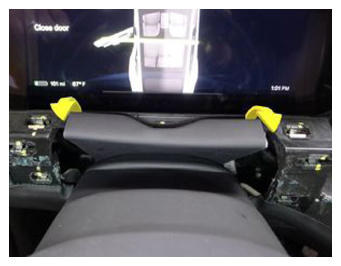

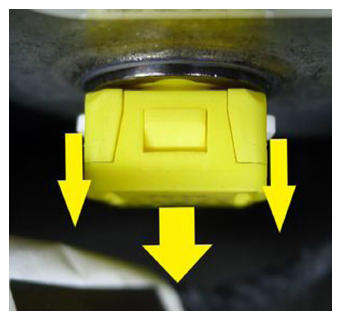

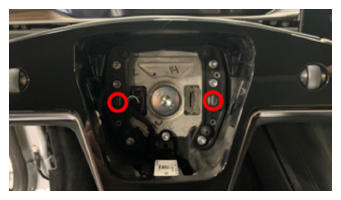

- Release spring clip securing driver air bag assembly to steering wheel and pull driver air bag assembly away from steering wheel
NOTE:
2x spring clips, 2x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o'clock position, Do not insert tool too far as air bag connector could be damaged
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

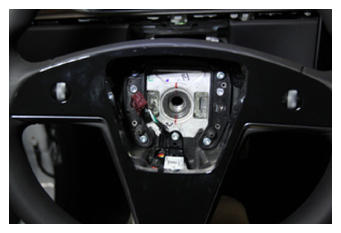

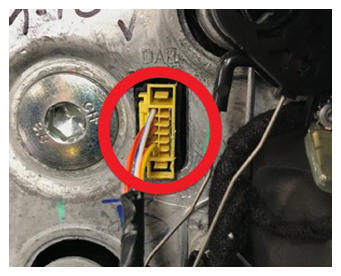

- Disconnect driver air bag connector and remove driver air bag assembly
NOTE:
1x connector, 2x tabs
 Courtesy of TESLA, INC.
|
- Disconnect steering wheel connector
NOTE:
1x connector
 Courtesy of TESLA, INC.
|
- Remove bolt that secures the steering wheel to the column
NOTE:
1x patch bolt, 10 mm allen, 80 N.m, Discard after removal
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

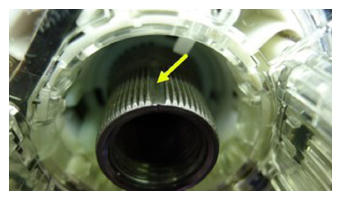

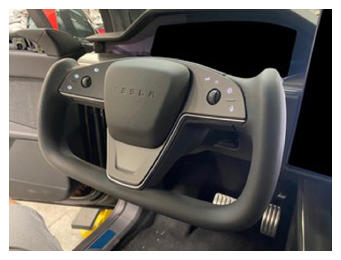

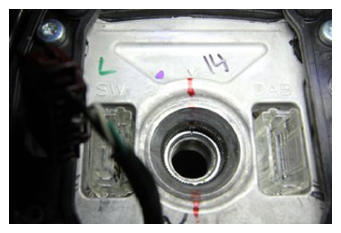

- Remove steering wheel
NOTE:

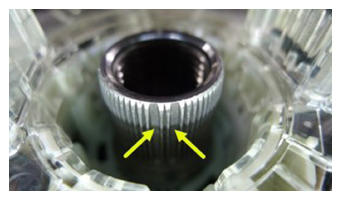

Note that the steering wheel is splined to the column
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

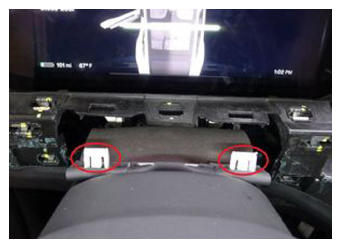

- Pull upward to release steering column upper shroud from lower shroud
NOTE:
6x clips, 4x datums
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove lower shroud to steering column
NOTE:
2x screws, T20, 1.5 N.m, 1x clip, 1x datum, Slide lower shroud rearward to release datum
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Disconnect steering column control module assembly connector
NOTE:
1x connector, Remove retaining clip on the connector, release connector, then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

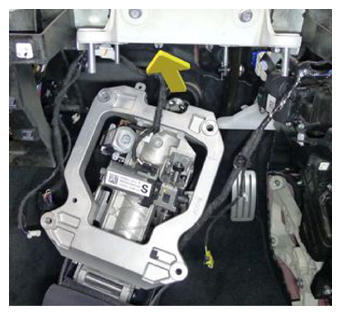

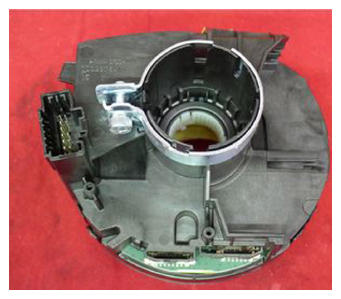

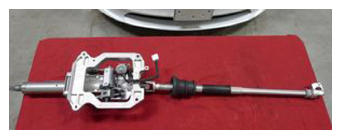

- Remove SCCM from steering column
NOTE:
1x bolt, 5 mm Allen, 9 N.m, Carefully slid module off steering column without rotating
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

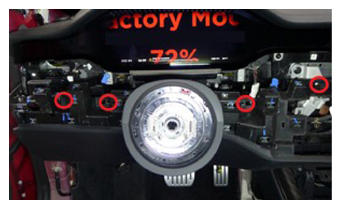

- Remove lower instrument panel assembly
NOTE:
8x screws, T20, 3 N.m, 8x tabs, Release assembly and carefully guide over upper steering column
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove fasteners securing the LV battery and move aside
NOTE:
3x bolts, 10 mm, 9 N.m, 2x datums, Take note of datums and carefully move assembly aside
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

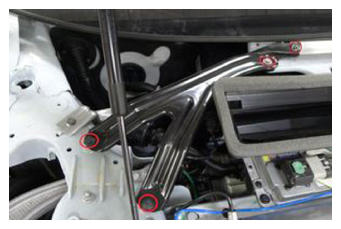

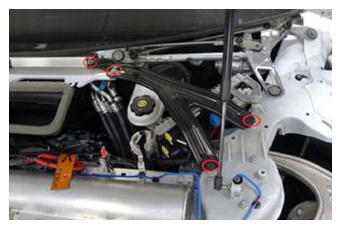

- Remove fasteners securing LH V-brace and remove assembly
NOTE:
3x bolts, 10 mm, 18 N.m, 1x nut, 10 mm, 9 N.m
 Courtesy of TESLA, INC.
|
- Remove fasteners securing RH V-brace and remove assembly
NOTE:
3x bolts, 10 mm, 18 N.m, 1x nut, 10 mm, 9 N.m
 Courtesy of TESLA, INC.
|

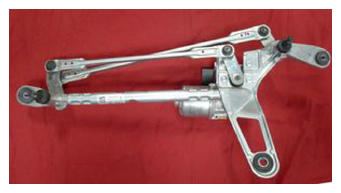

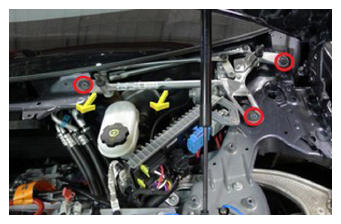

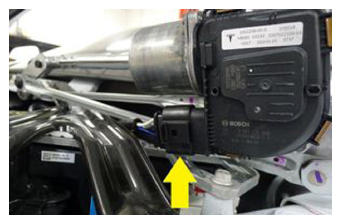

- Remove wiper module
NOTE:
3x bolts, 10 mm, 8 N.m, 1x connector, Rotate module forward and up to access connector, Observe LH wiper arm pivot during removal to avoid damage to windshield
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

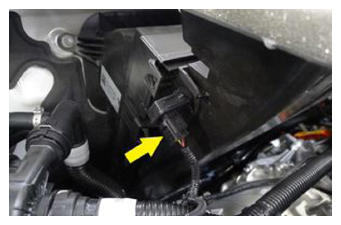

- Disconnect air quality sensor harness
NOTE:
1x connector
 Courtesy of TESLA, INC.
|

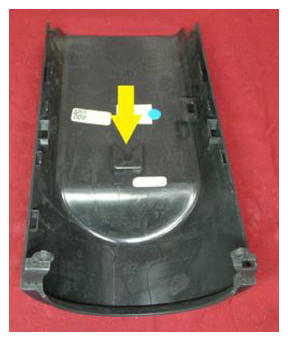

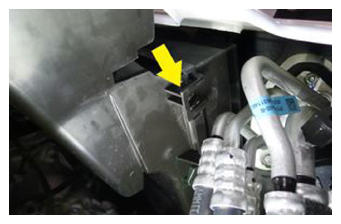

- Remove HEPA filter assembly cover
NOTE:
2x tabs, 2x datums, 2x slots, Be cautious and do not damage the mounting clips, Maneuver cover forward and up in front of V-brace cross member
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove HEPA filter
NOTE:
2x clips, Release clips, Pivot filter forward and out of housing
 Courtesy of TESLA, INC.
|
- Release battery coolant pump from bracket
NOTE:
1x clip, Slide pump off bracket and position lower coolant hose clear of HEPA assembly
 Courtesy of TESLA, INC.
|

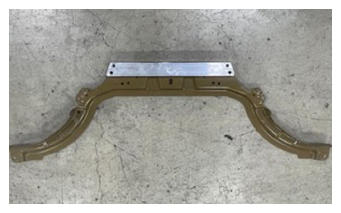

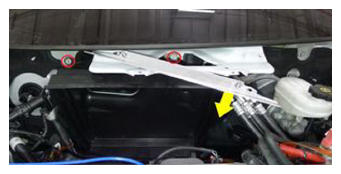

- Release V-brace crossmember
NOTE:
2x nuts, 10 mm, 18 N.m
 Courtesy of TESLA, INC.
|
- Remove HEPA housing assembly
NOTE:
2x nuts, 10 mm, 7 N.m, Rotate V-brace cross member forward to create access to HEPA assembly retaining nuts, Maneuver assembly forward and up out of vehicle
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

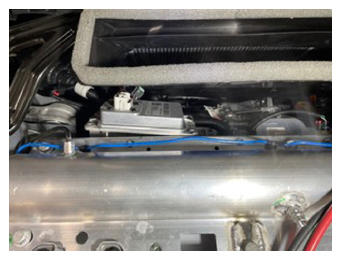

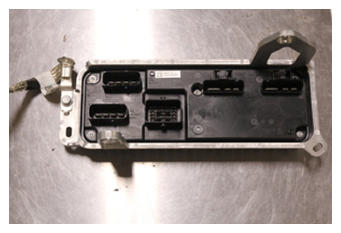

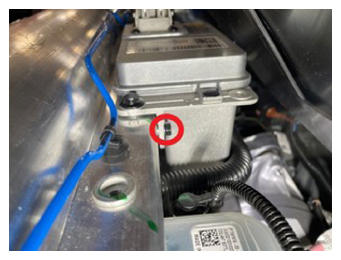

- Release battery controller ground cable
NOTE:
1x bolt, 10 mm, 9 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

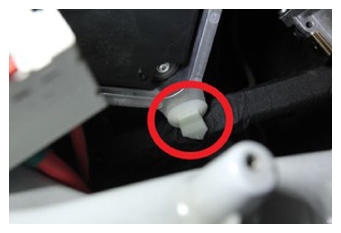

- Release harness clip from battery controller
NOTE:
1x fir tree clip
 Courtesy of TESLA, INC.
|

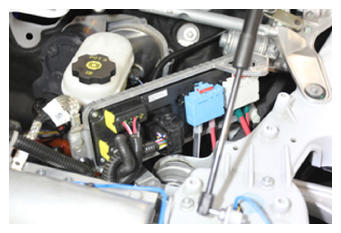

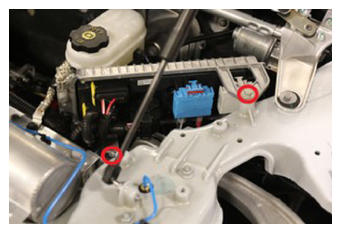

- Remove fasteners securing battery controller and tilt controller for access
NOTE:
1x bolt, 10 mm, 10 N.m, 1x nut, 10 mm, 10 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release top J4 connection from battery controller
NOTE:
1x locking connector, Slide mechanism outwards to release
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release middle J5 connection from battery controller
NOTE:
1x locking connector, Push in locking tab and lift lever to release
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release side J3 connection from battery controller
NOTE:
1x locking connector, Slide mechanism outwards to release
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

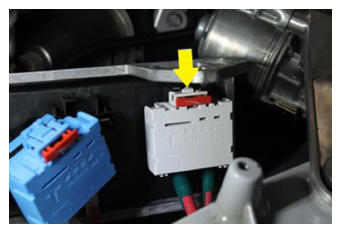

- Release middle J2 connection from battery controller
NOTE:
1x locking connector, Slide red locking tab outwards and release
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

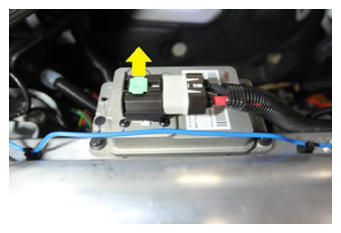

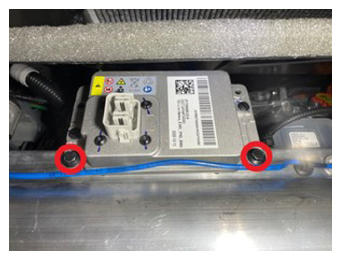

- Release side J1 connection from battery controller
NOTE:
1x locking connector, Slide red locking tab outwards and release
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release harness clip from battery controller
NOTE:
1x clip
 Courtesy of TESLA, INC.
|
- Remove battery controller from vehicle
 Courtesy of TESLA, INC.
|

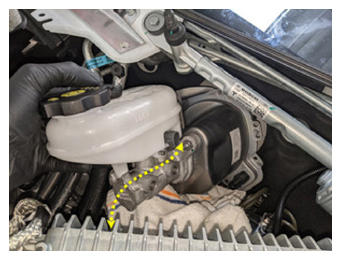

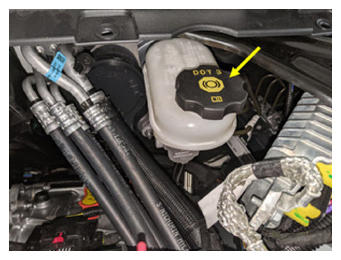

- Clean area around brake fluid reservoir and remove brake reservoir cap
 Courtesy of TESLA, INC.
|
- Remove brake fluid from brake reservoir
 Courtesy of TESLA, INC.
|
- Install brake reservoir cap
 Courtesy of TESLA, INC.
|

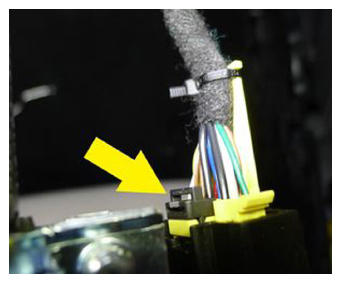

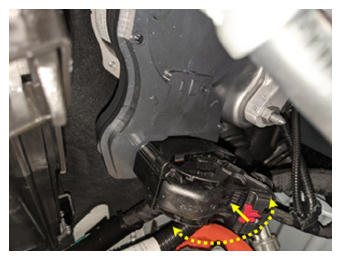

- Disconnect brake booster ECU connector
NOTE:
1x connector, Release red locking tab, then depress black tab and rotate lever to release
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Disconnect DTS position sensor from brake booster
NOTE:
1x connector, Release red locking tab
 Courtesy of TESLA, INC.
|

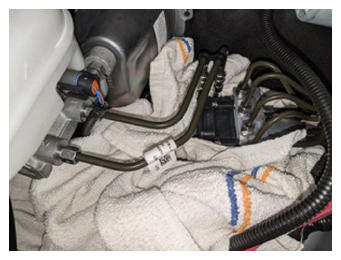

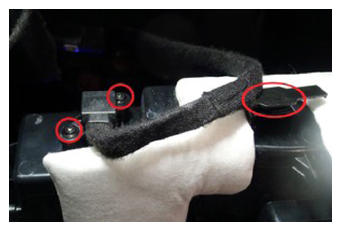

- Place shop rags underneath brake lines to catch any fluid lost
 Courtesy of TESLA, INC.
|

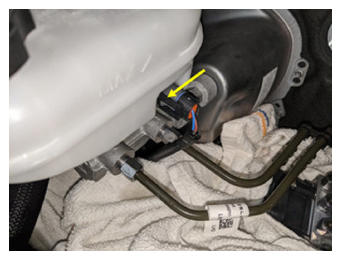

- Disconnect brake fluid level sensor
NOTE:
1x connector
 Courtesy of TESLA, INC.
|

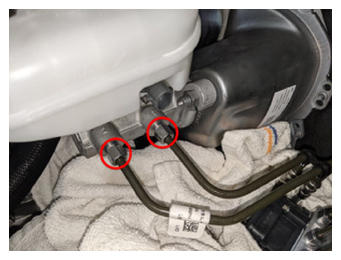

- Remove flexible brake lines from master cylinder
NOTE:
2x nuts, 12 mm, 16 N.m
 Courtesy of TESLA, INC.
|

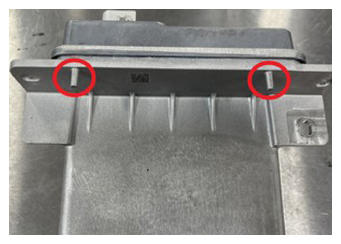

- Remove fasteners securing brake booster assembly to bulkhead
NOTE:
2x nuts, 13 mm, 16.5 N.m, Discard after removal
 Courtesy of TESLA, INC.
|
- Remove brake booster assembly from vehicle
NOTE:
Maneuver flexible brake lines out of the way for clearance
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

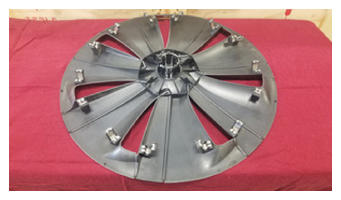

- Remove LH front wheel cap
NOTE:
Lift every other spoke at a time until cap is released from rim
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

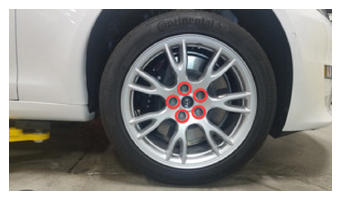

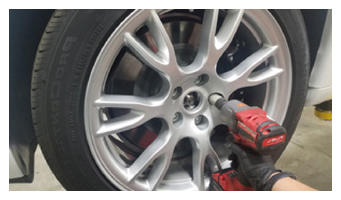

- Loosen LH front wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH front wheel cap
NOTE:
Lift every other spoke at a time until cap is released from rim
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Loosen RH front wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH rear wheel cap
NOTE:
Lift every other spoke at a time until cap is released from rim
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Loosen RH rear wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH rear wheel cap
NOTE:
Lift every other spoke at a time until cap is released from rim
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Loosen LH rear wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Raise vehicle partially and lower onto locks
NOTE:
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH front wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH front wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH rear wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH rear wheel
NOTE:
5x nuts, 21 mm, 175 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Raise vehicle fully and lower lift onto locks
NOTE:
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove clips securing front aero shield
NOTE:
5x push clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

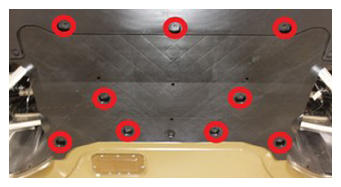

- Remove bolts securing front aero shield and remove from vehicle
NOTE:
9x bolts, 10 mm, 6 N.m
 Courtesy of TESLA, INC.
|
- Release clips securing wheel house liner to front skid plate
NOTE:
4x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

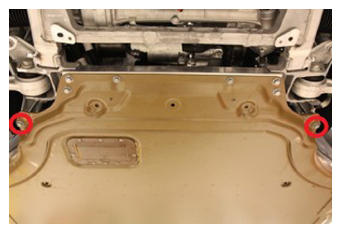

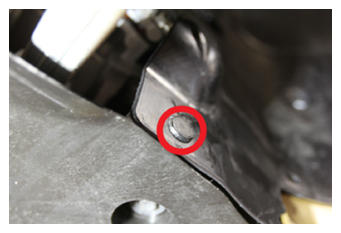

- Remove bolts securing front skid plate to body sill
NOTE:
2x bolts, 15 mm, 30 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove bolts securing front skid plate to body casting
NOTE:
2x bolts, 15 mm, 60 N.m
 Courtesy of TESLA, INC.
|
- Remove bolts securing front skid plate to front subframe and remove skid plate
NOTE:
4x bolts, 15 mm, 70 N.m, 2x bolts, 10 mm, 10 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove bolt securing steering gear assembly to electric steering column
NOTE:
1x bolt, 13 mm, 30 N.m
 Courtesy of TESLA, INC.
|

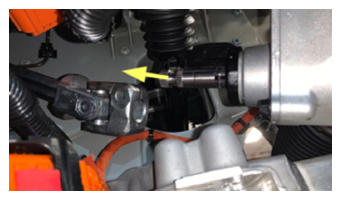

- Slide steering column upward to remove it from steering gear assembly
 Courtesy of TESLA, INC.
|

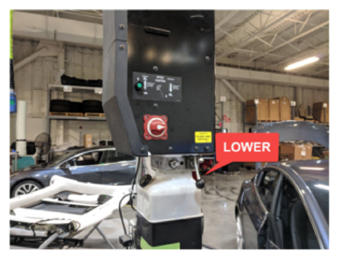

- Lower vehicle partially and set lift onto locks
NOTE:
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release steering column harness
NOTE:
1x connector, 1x clip
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

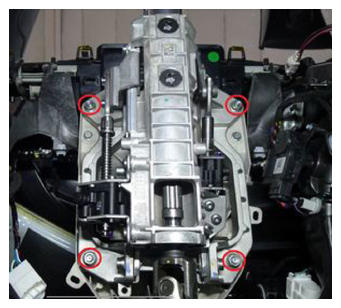

- Remove nuts securing upper steering column to IP carrier
NOTE:
4x nuts, 13 mm, 15 N.m
 Courtesy of TESLA, INC.
|
- Remove steering column
NOTE:
Recommend assistance, Guide lower steering shaft out through bulkhead while maneuvering upper steering brace out driver's door
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
