Bracket - Support - Rocker Panel - Rear - LH - Remove And Replace: Install

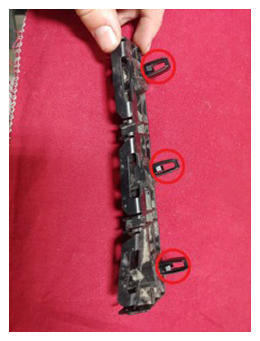

- Install the clips (x3), and then install the bolts (x3) that attach the LH rear rocker panel support bracket to the body.
3 N.m (2.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
- Install the LH rocker panel molding. See Molding - Rocker Panel - LH (Remove And Replace) .
- Install the LH rocker panel scuff plate. See Scuff Plate - Rocker Panel - LH (Remove And Replace) .
