Tesla Badge - Front - Remove And Replace: Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove And Replace) .
  2. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove And Replace) .
  3. Remove the front underhood apron. See Underhood Apron - Front (Remove And Replace) .

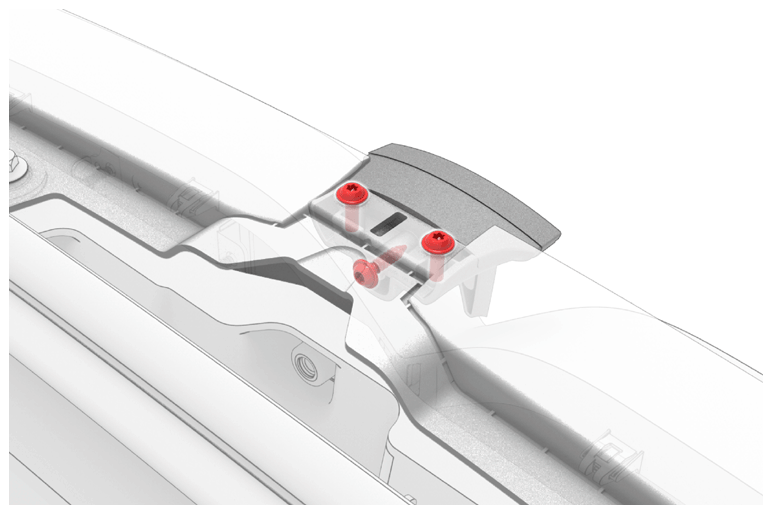

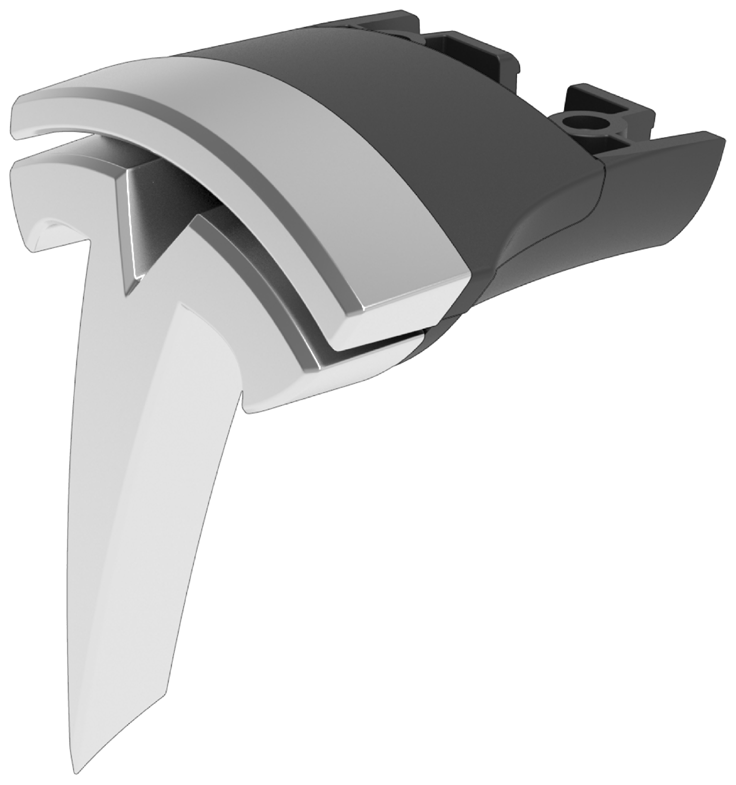

  4. Remove the screws (x3) that attach the T-badge to the T-badge support.
    NOTE: One fastener is located under the rear lip.

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • 4 in extension
    • Torque wrench 1/4 in drive hexagon - 1060071-00-A
    G15081113Courtesy of TESLA, INC.
    G15081114Courtesy of TESLA, INC.
