Exterior Release Switch - Liftgate - Remove And Replace: Remove

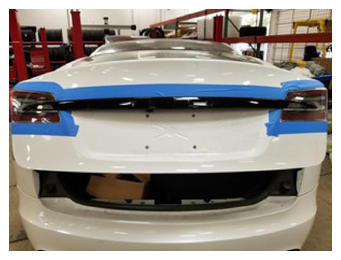

Apply tape around the liftgate, tail lights and applique.

Courtesy of TESLA, INC.
Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
Remove the LH and RH rear fog/reverse light. See Light - Fog/Reverse - Rear - LH (Remove and Replace) .

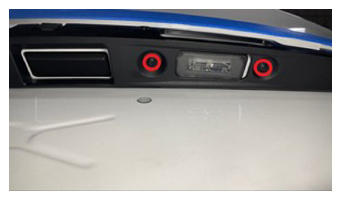

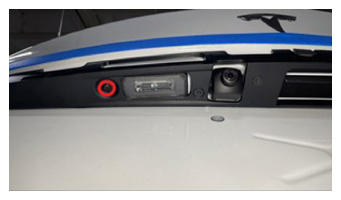

Remove the bolts (x3) that attach the liftgate applique bracket to the liftgate.
2 N.m (1.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

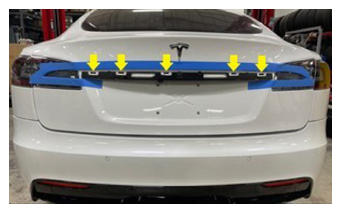

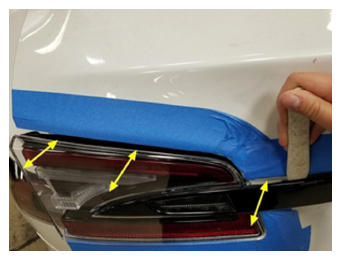

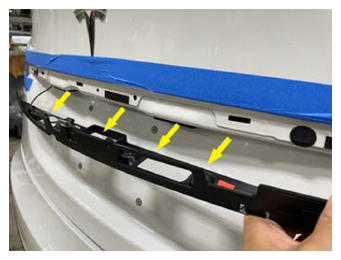

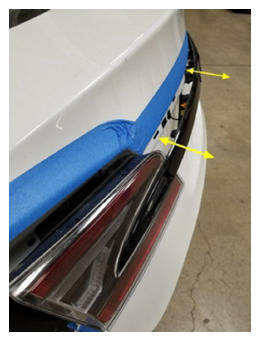

Release the clips (x5) that attach the liftgate tail light and applique bracket assembly to the liftgate body, and then rest the bracket assembly on the liftgate.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

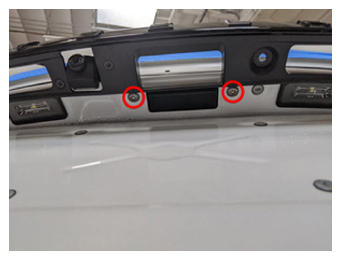

Remove the bolt that attaches the liftgate exterior release switch to the liftgate, and then release the switch from the liftgate.
14.4 N.m (10.6 ft-lbs)

NOTE: Support the switch from the interior when released.

Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

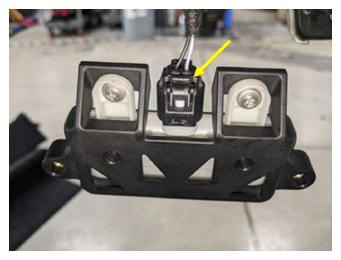

Disconnect the liftgate exterior release switch electrical connector.

Courtesy of TESLA, INC.

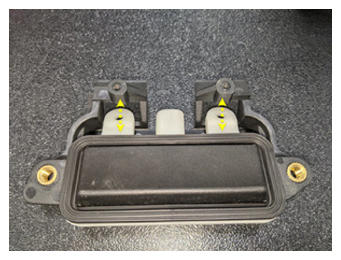

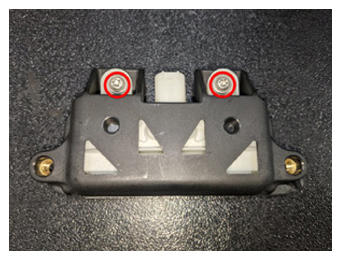

Remove the screws (x2) that attaches the liftgate exterior release switch to the release switch surround, and then separate the switch from the surround.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
