Exterior Release Switch - Liftgate - Remove And Replace: Install

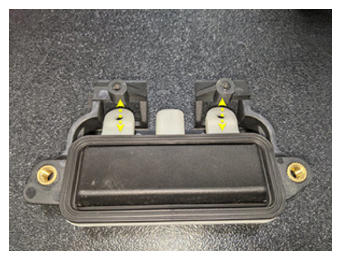

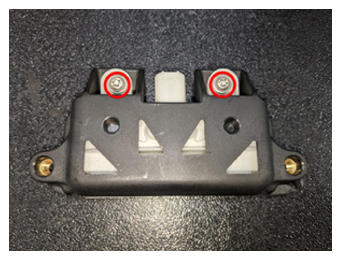

Attach the liftgate exterior release switch to the release switch surround, and then install the screws (x2) that attach the switch to the surround.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

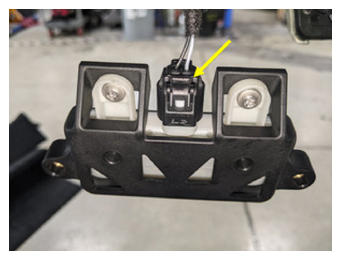

Connect the liftgate exterior release switch electrical connector.

Courtesy of TESLA, INC.

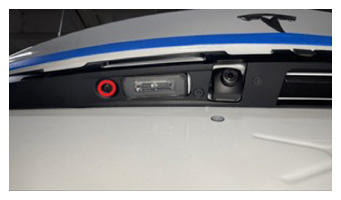

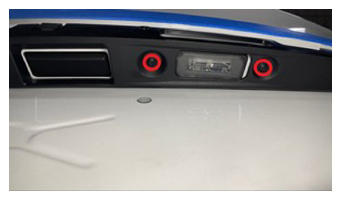

Position the liftgate exterior release switch onto the liftgate, and then install the bolts that attach the release switch to the liftgate.
14.4 N.m (10.6 ft-lbs)

NOTE: Support the release switch from the interior.

Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

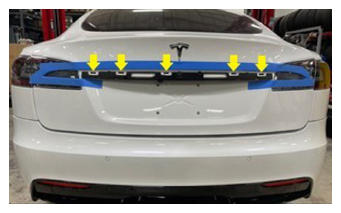

Fasten the clips (x5) that attach the liftgate tail light and applique bracket assembly to the liftgate body.

Courtesy of TESLA, INC.

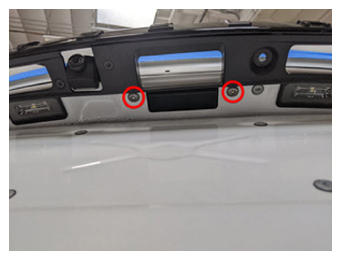

Install the bolts (x3) that attach the liftgate applique bracket to the liftgate.
2 N.m (1.5 ft-lbs)

NOTE: Apply double sided tape as necessary.

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH and RH rear fog/reverse light. See Light - Fog/Reverse - Rear - LH (Remove and Replace) .
Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
Remove the tape from the liftgate, tail lights and applique.
