Gas Strut - Hood - LH - Remove And Replace: Install

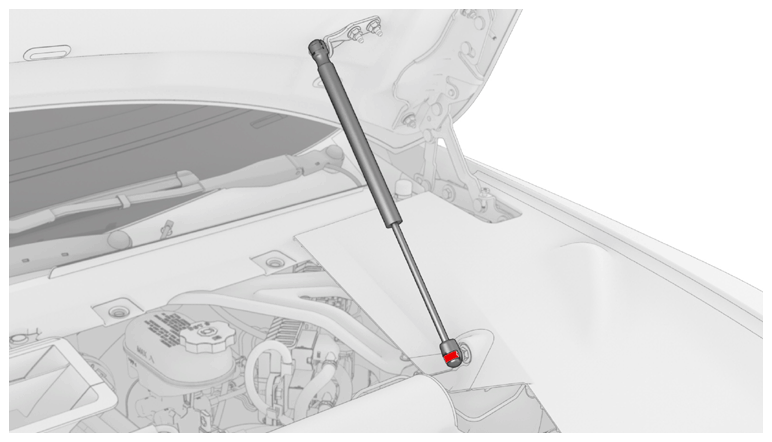

  1. Position the hood gas strut to the vehicle, and then install the clip that attaches the hood gas strut to the vehicle.
    G15079350Courtesy of TESLA, INC.

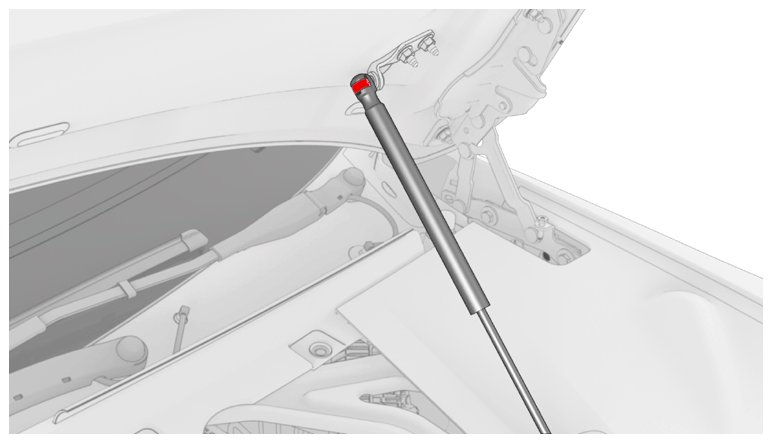

  2. Position the hood gas strut to the hood, and then install the clip that attaches the hood gas strut to the hood.
    G15079351Courtesy of TESLA, INC.
  3. Remove the hood prop.
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
