Bracket - Passive Hood Strut - LH - Remove And Replace: Install

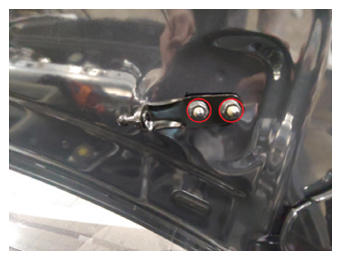

- With assistance, position the LH passive hood strut bracket onto the vehicle, and then install the nuts that attach the bracket to the vehicle.
Torque 15 N.m
Tip: Use of the following tool(s) is recommended:
- 13 mm deep socket
- Flex head ratchet/flex head torque wrench

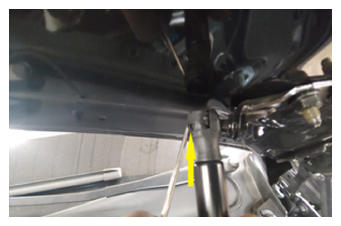

- With assistance, position the LH hood strut onto the hood strut bracket, and then fasten the clip.
- Close the hood.
