V Bar - Fascia - Front - Remove And Replace: Remove
- Remove the front fascia assembly. See Fascia Assembly - Front (Remove And Install) .

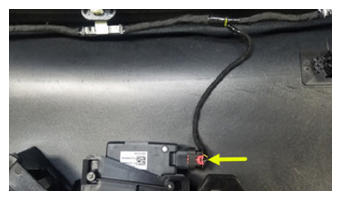

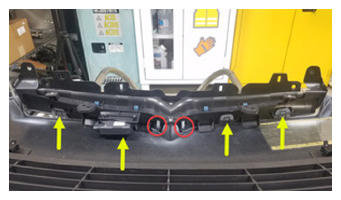

- Disconnect the front BLE assembly electrical connector.NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

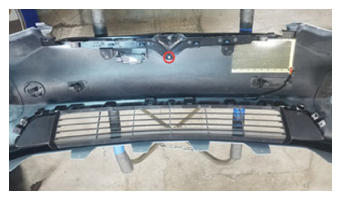

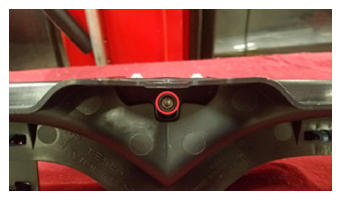

- Remove the screw that attaches the T-badge support to the front fascia assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension

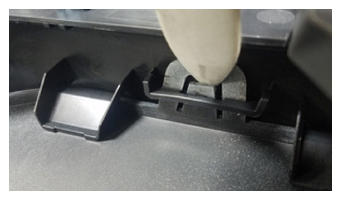

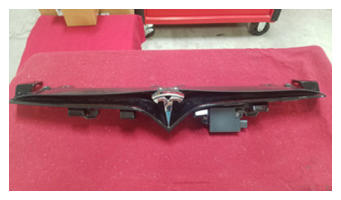

- Release the tabs (x4) that attach the T-badge support to the front fascia assembly, and then remove it from the assembly.

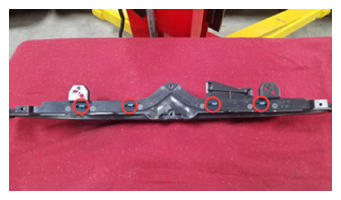

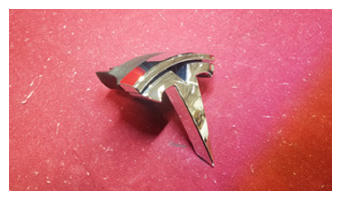

- Remove the screws (x3) that attach the front fascia T-badge to T-badge support, and then remove the badge from the support.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension

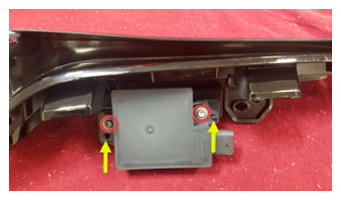

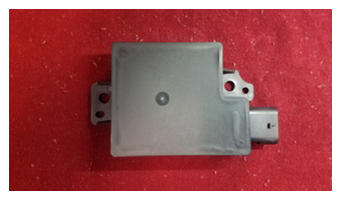

- Remove the screws that attach the front BLE assembly to the T-badge support, and then remove the BLE assembly from the T-badge support.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
- Remove the screws that attach the front fascia V-bar to the T-badge support.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension

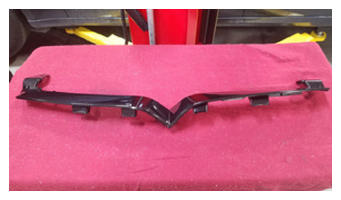

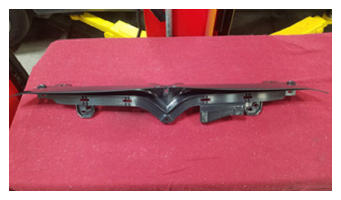

- Release the clips (x4) that attach the front fascia V-bar to the T-badge support, and then remove the V-bar from the T-badge support.
