Air Extractor - Rear - Outer - LH - Remove And Replace: Install

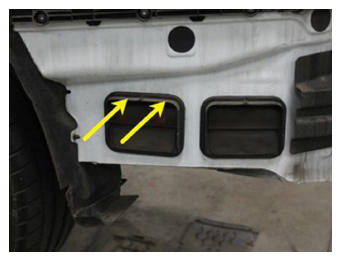

  1. Position the LH outer rear air extractor onto the vehicle, and then install the tabs (x4) that attach the air extractor to the vehicle.
    G15077132Courtesy of TESLA, INC.
    G15077133Courtesy of TESLA, INC.
  2. Install the rear fascia assembly. See Fascia Assembly - Front (Remove And Install) .
