Light - Fog/Reverse - Rear - LH - Remove And Replace: Install

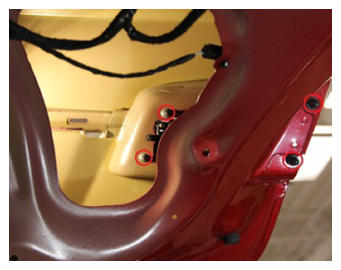

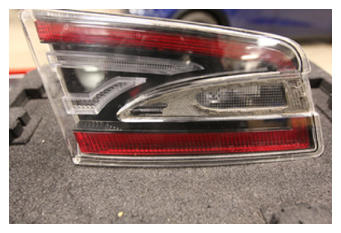

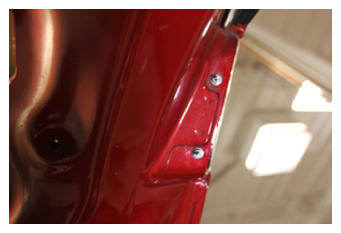

Position the LH rear fog/reverse light into the liftgate, install the nuts (x4) that attach the light to the liftgate, and then install the rubber covers (x2).
4 N.m (2.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

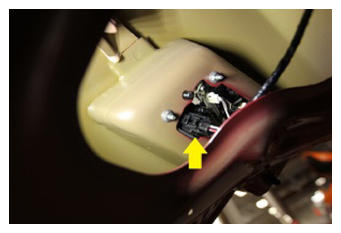

Connect the LH rear fog/reverse light electrical connector.

Courtesy of TESLA, INC.
Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
Install the liftgate applique. See Applique - Liftgate (Remove and Replace) .
