Motor - Seat Tilt - Driver Seat - Remove And Replace: Install

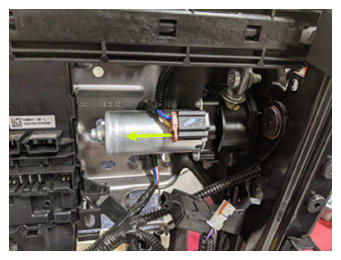

Position the driver seat, seat tilt motor to seat cushion frame for installation

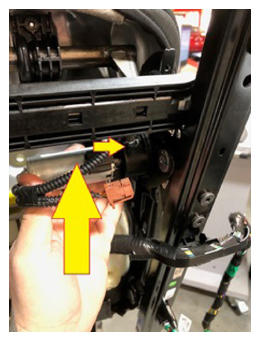

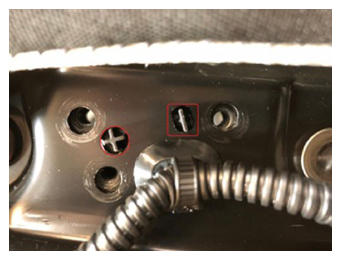

NOTE: Hold the tilt motor up and against the seat frame. Ensure the motor alignment pins are visible in the seat frame.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

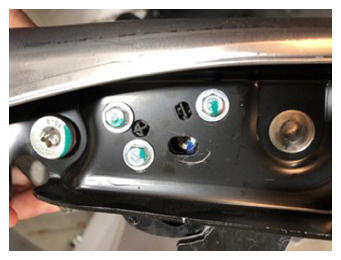

Install the bolts (x3) that attach the driver seat, seat tilt motor to the seat assembly.
7.5 N.m (5.5 ft-lbs)

NOTE: Do not remove the fastener for the adjustment arm.

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
Courtesy of TESLA, INC.

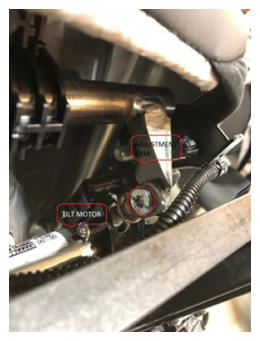

Install a new bolt that attaches the driver seat, seat tilt motor adjustment arm to the seat assembly.
16 N.m (11.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T40 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Connect the driver seat, seat tilt motor electrical connector.

Courtesy of TESLA, INC.
Install the driver seat into the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace) .
Perform a seat calibration. See SEAT - 1ST ROW (CALIBRATION) .
Close LH doors and raise the LH windows.
