Fan - Cushion - Driver Seat - Remove And Replace: Install

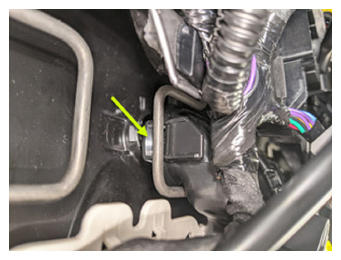

  1. Install the LH front seat cushion fan onto the seat frame.
    NOTE: Start by installing the upper portion of the fan onto seat frame, and then verify retaining clips (x2) are fully engaged. Install the lower portion of fan onto seat frame one tab at a time.
    G15081474Courtesy of TESLA, INC.

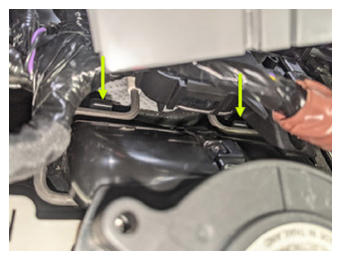

    G15081475Courtesy of TESLA, INC.
    G15081476Courtesy of TESLA, INC.

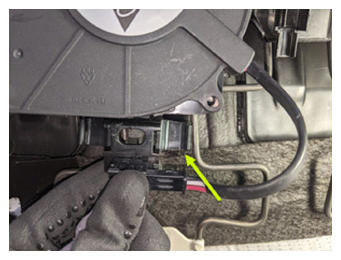

  2. Secure that tabs (x2) that attach the lower portion of seat cushion fan to the seat frame.
    G15081477Courtesy of TESLA, INC.
    G15081478Courtesy of TESLA, INC.

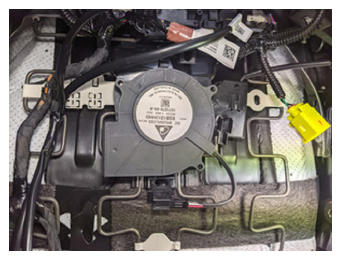

    G15081479Courtesy of TESLA, INC.

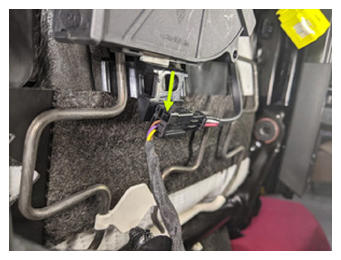

  3. Connect the driver seat cushion ventilation electrical connector to the cushion fan.
    G15081480Courtesy of TESLA, INC.

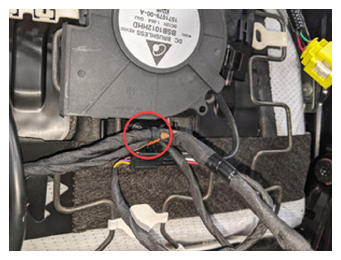

  4. Fasten the clip that attaches the seat harness to the cushion fan.
    G15081481Courtesy of TESLA, INC.

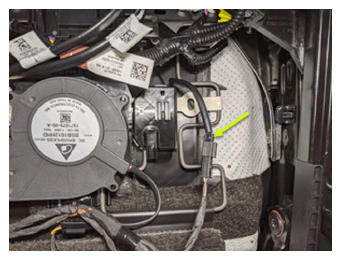

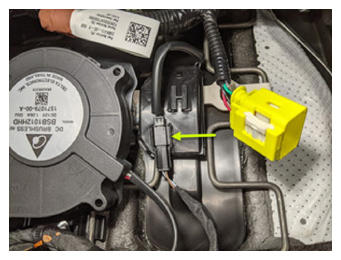

  5. Slide the OCS harness connector downward onto the SBR bracket, and then connect the electrical connector.
    G15081482Courtesy of TESLA, INC.
    G15081483Courtesy of TESLA, INC.

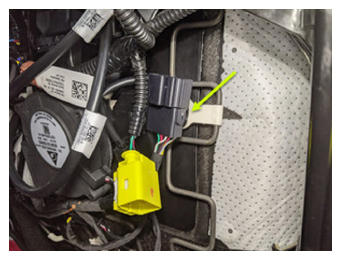

  6. Fasten the clip that attaches the driver seat harness to the seat frame bracket.
    G15081484Courtesy of TESLA, INC.

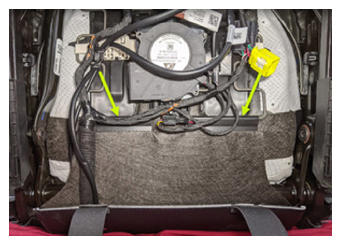

  7. Install the soft trim retainers (x2) to the seat frame.
    G15081485Courtesy of TESLA, INC.

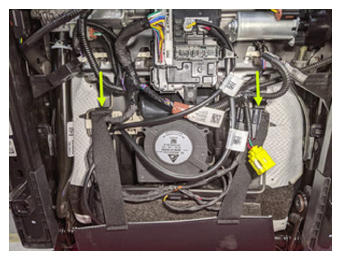

  8. Fasten the seat back elastic straps (x2) onto the seat frame.
    G15081486Courtesy of TESLA, INC.
  9. Position the seat upright.
  10. Install the driver seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace)
  11. Connect a laptop with Toolbox 3 to the vehicle.
  12. In Toolbox, click the Actions/Autodiag  tab, and then search for "Calibration".
  13. Click PROC_VCSEATD_SEAT-CALIBRATE  , and then click Run  and allow the routine to complete.
    NOTE: Verify there are no items on seat during this routine.
    NOTE: Click the "X" at top right of the window to close once complete.
  14. Disconnect Toolbox 3 and remove the laptop from the vehicle.
