Pivot Bushing - Seat Back - 2nd Row - RH - Remove And Replace: Install

  1. Mark the new RH 2nd row seat back pivot bushing to match orientation of the old pivot bushing.

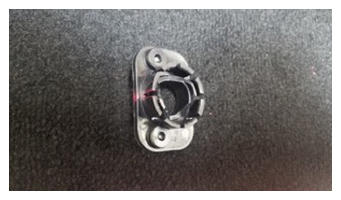

    G15082506Courtesy of TESLA, INC.
  2. Press the RH 2nd row seat back pivot bushing onto the assembly to secure it to the RH 2nd row pivot static collar.

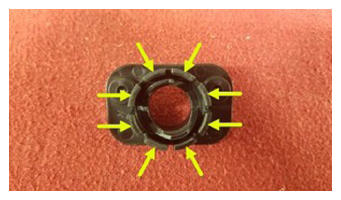

    G15082507Courtesy of TESLA, INC.

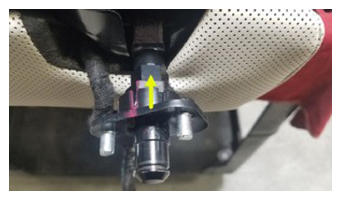

    G15082508Courtesy of TESLA, INC.

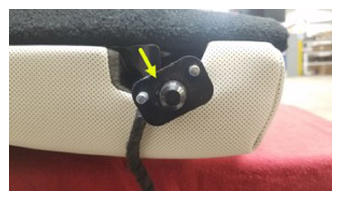

    G15082509Courtesy of TESLA, INC.
  3. Install the pivot cast onto the seat assembly.

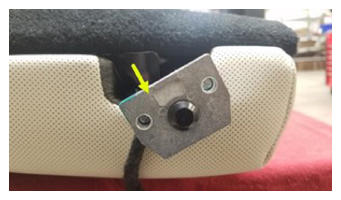

    G15082510Courtesy of TESLA, INC.
  4. Install the E-clip that attaches the pivot cast to the seat assembly.
    WARNING: Use caution to avoid personal injury or damage to vehicle interior.

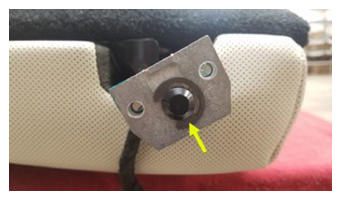

    G15082511Courtesy of TESLA, INC.
  5. Install the RH 2nd row seat back. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .
