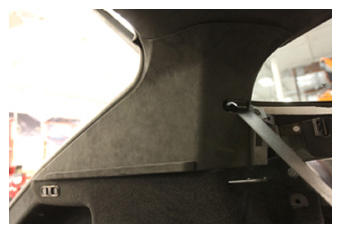

Trim - C-Pillar - Upper - LH - Remove And Replace: Remove
- Remove the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
- Remove the LH and RH side bolster trims. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
- Remove 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .

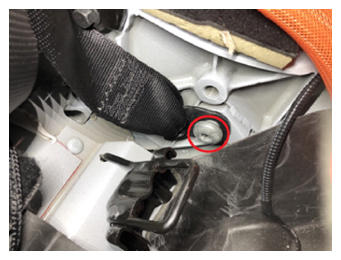

- Remove and discard the lower bolt that attaches the LH 2nd row seat belt retractor to the vehicle.
40 N.m (29.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 15 mm socket
- Fold the LH 2nd row seat to the down position.CAUTION: If seat cushion is not present, protect the seat as required.
- Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove And Replace) .
- Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove And Replace) .
- Release the clips (x7) that attach the LH upper C-pillar trim to the C-pillar, and then feed the seat belt through the trim to remove it from the vehicle.
